Nissan Rogue Service Manual: Body construction

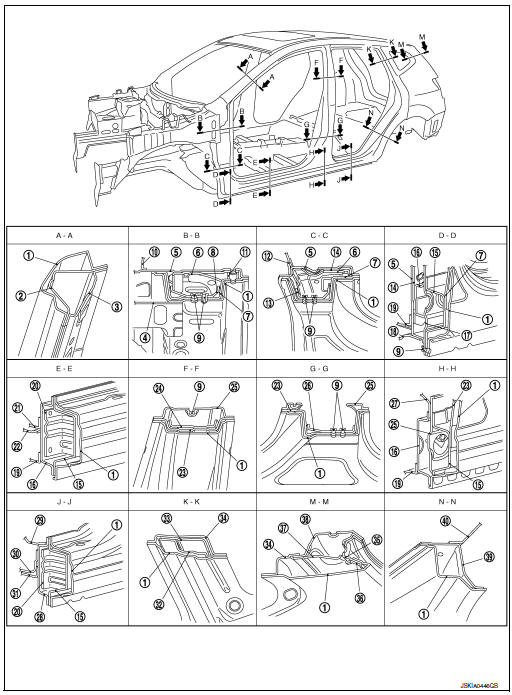

Body Construction

Body Construction

  1. Outer body side
  2. Outer front pillar reinforcement
  3. Upper inner front pillar
  4.  Rear hoodledge reinforcement
  5. Side dash
  6. Inner front pillar reinforcement
  7. Lower front pillar hinge brace
  8. Upper hinge plate
  9. Weld nut
  10. Upper dash
  11.  Upper steering member bracket
  12.  Lower dash
  13.  Lower hinge plate
  14. Side dash reinforcement
  15. Outer sill reinforcement
  16.  Inner sill
  17.  Lower front pillar reinforcement
  18.  Front outrigger
  19.  Front floor
  20. Outer sill brace
  21.  2nd crossmember
  22.  2nd crossmember reinforcement
  23.  Center pillar hinge brace
  24.  Center pillar reinforcement
  25.  Inner center pillar
  26.  Lower center pillar hinge brace
  27.  Seat belt anchor
  28.  Inner sill extension
  29.  Rear seat crossmember
  30.  Rear floor front extension
  31.  Rear side member
  32.  Inner rear pillar reinforcement
  33.  Rear pillar seat belt anchor
  34.  Inner rear pillar
  35.  Back pillar main
  36.  Back door stay reinforcement
  37.  Upper back pillar reinforcement
  38. Rear roof rail brace
  39.  Outer rear wheelhouse
  40.  Inner rear wheelhouse

Rear Fender Hemming Process

  1. A wheel arch is to be installed and hemmed over the left and right outer wheel houses.
  2. In order to hem the wheel arch, it is necessary to repair any damaged or defaced parts around outer wheel house.

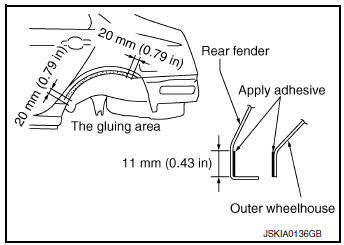

CAUTION: Ensure that the area that is to be glued around the outer wheelhouse is undamaged or defaced.

PROCEDURE OF THE HEMMING PROCESS

<Adhesive> 3Mâ„¢ Automixâ„¢ Panel Bonding Adhesive 08115 or equivalent

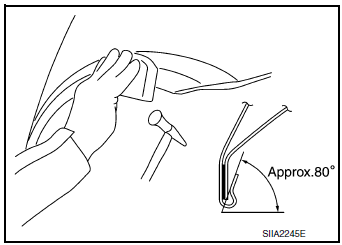

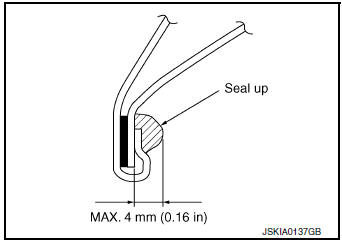

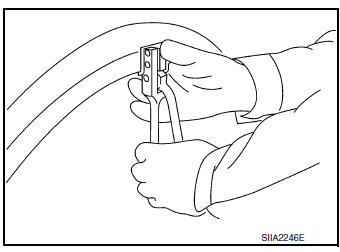

Procedure of the hemming process

Procedure of the hemming process

Procedure of the hemming process

Procedure of the hemming process
