Nissan Rogue Service Manual: Blower motor

Exploded View

Exploded View

  1. Heating and cooling unit assembly
  2. Blower motor
  1.  Screw

Front

Removal and Installation

REMOVAL

  1. Remove glove box assembly. Refer to IP-23, "Removal and Installation".
  2.  Disconnect the harness connector from the blower motor.
  3.  Remove blower motor screw (B).

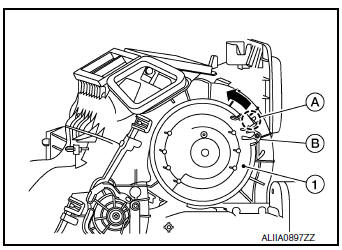

  4.  Release hook (A) then rotate the blower motor (1) counterclockwise and remove.

: Hook

Removal and Installation

INSTALLATION

Installation is in the reverse order of removal.
