Nissan Rogue Service Manual: Battery terminal with fusible link

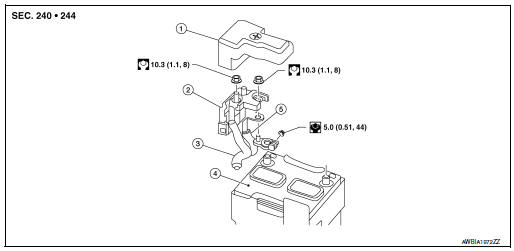

Exploded View
- Cover
- Fusible link box (battery)
- Positive cable
- Battery
- Harness connector
Front
Removal and Installation
REMOVAL
- Loosen battery terminal nuts and disconnect both negative and
positive terminals from the battery.
CAUTION: To prevent damage to the parts, disconnect the battery negative terminal first.
- Disconnect positive cable from fusible link box (battery).
- Disconnect harness connectors from fusible link box (battery) and remove fusible link box (battery).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Replace the fusible link box battery if it has been dropped or sustained and impact. To install the battery, carefully read the following instructions:
- To prevent damage to the parts, connect the battery cable to the positive terminal first.
- After connecting battery cables, to securely supply battery voltage, ensure that they are tightly
- amped to battery terminals for good contact.
• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to PG-72, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement".
Battery
Exploded View
Battery tray liner
Battery frame
Battery
Battery rod
Battery cover
Battery tray
Front
Removal and Installation (Battery)
REMOVAL
Pull back cov ...
