Nissan Rogue Service Manual: Back door window glass

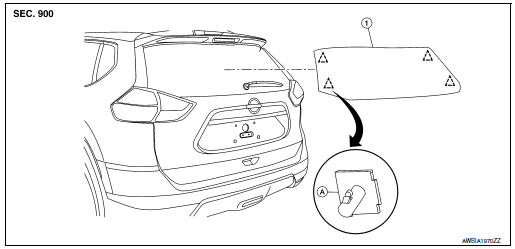

Exploded View

Exploded View

  1. Back door window glass
  2. Clip

Clip

Removal and Installation

REMOVAL

  1.  Remove back door finisher. Refer to INT-38, "Removal and Installation".
  2.  Remove back door lock. Refer to DLK-263, "DOOR LOCK : Removal and Installation" (for intelligent key) or DLK-380, "DOOR LOCK : Removal and Installation" (for others).
  3.  Remove the rear wiper arm and motor. Refer to WW-71, "Removal and Installation".
  4.  Disconnect harness connectors from back door window defogger.

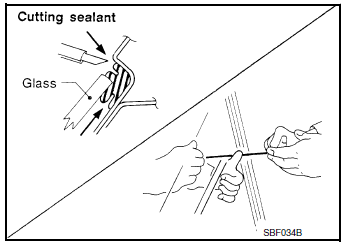

  5.  Remove back door window glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING: When cutting back door window glass from vehicle, always wear safety glasses and heavy gloves to prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

NOTE: Mark body and glass with matching marks if back door window glass is to be reused.

Removal

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

CAUTION:

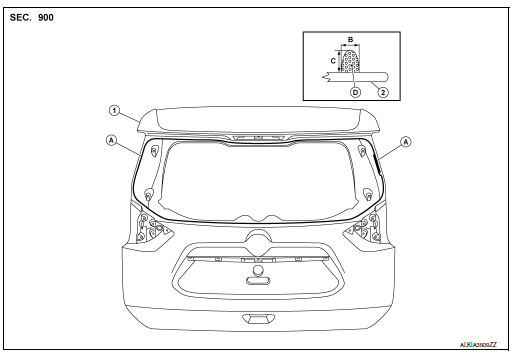

Installation

  1. Back door
  2. Back door window glass
  3.  Primer and adhesive area
  4.  7.0 mm (0.28 in)
  5. 12.0 mm (0.47 in)
  6. Adhesive

REPAIRING WATER LEAKS FOR BACK DOOR GLASS

Inspection

REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS

Leakage can be repaired without removing the glass.

Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

This can be done by applying water to the back door window glass area while pushing glass outward.

Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.
