Nissan Rogue Service Manual: Air breather

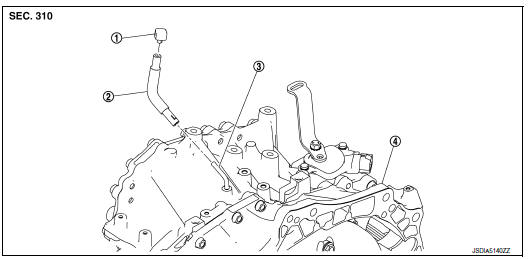

Exploded View
- Air breather
- Air breather hose
- Air breather tube
- Transaxle assembly
: Vehicle front
Removal and Installation
REMOVAL
- Remove air cleaner and air duct. Refer to EM-24, "Removal and Installation".
- Remove air breather hose from transaxle assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not bend the air breather hose to prevent damage to the hose.
- Insert air breather hose to the end of air breather.

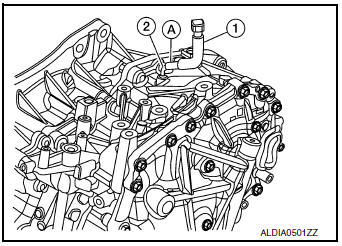

- Insert air breather hose (1) to air breather tube (2) all the way to the curve of the tube.
- Insert air breather hose to air breather tube so that the paint mark (A) is facing upward.
TCM
Exploded View
Bracket
Bracket
TCM
: Vehicle front
: N·m (kg-m, in-lb)
Removal and Installation
CAUTION:
Do not impact the TCM when removing or installing TCM.
Wh ...
Oil pan
Exploded View
COMPONENT PARTS LOCATION
Transaxle assembly
Oil pan gasket
Oil pan
Drain plug
Drain plug gasket
Magnet
Overflow plug
O-ring
Always replace after every
d ...
