Nissan Rogue Service Manual: Air bag diagnosis sensor unit

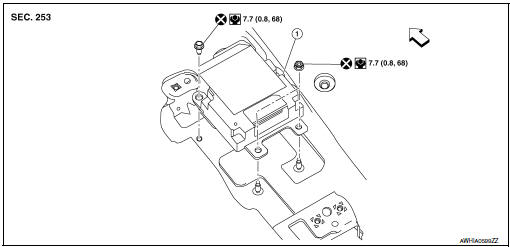

Exploded View

Exploded View

  1. Diagnosis sensor unit

Front

Removal and Installation

WARNING:

REMOVAL

  1.  Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part number using CONSULT.
  2.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
  3.  Remove center console assembly. Refer to IP-18, "Removal and Installation".
  4.  Disconnect the harness connectors for the following SRS components: SR-19, "Removal and Installation" (side curtain air bag modules), SR-28, "Removal and Installation" (front seat belt pre-tensioner) and SR- 17, "Removal and Installation" (front side air bag module).
  5.  Disconnect the harness connectors from the diagnosis sensor unit.
  6.  Remove bolt and nuts, then remove the air bag diagnosis sensor unit.

CAUTION:

Removal

INSTALLATION

Install air bag diagnosis sensor unit in the reverse order of removal.

CAUTION:

NOTE: If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify that the correct air bag diagnosis sensor unit was installed.

Front seat belt pre-tensioner

Removal and Installation

The front seat belt has two pre-tensioners. One pre-tensioner is part of the seat belt retractor and the other is a lap belt pre-tensioner. For removal and installation refer to SB-8, "SEAT BELT RETRACTOR : Removal and Installation" (seat belt retractor) and SB-8, "Exploded View" (lap belt pretensioner).

Front seat belt buckle switch

Removal and Installation

The front seat belt buckle switch is part of the front seat belt buckle. For removal and installation of the front seat belt buckle, refer to SB-11, "FRONT SEAT BELT BUCKLE : Removal and Installation".

Side air bag (satellite) sensor
Exploded View Front door satellite sensor Front side air bag satellite sensor Rear side satellite sensor Satellite sensor harness connector  Bolt  Nut  Pawl ...

Occupant classification system control unit
Removal and Installation OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT WARNING:  Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least ...
