Nissan Rogue Service Manual: Adjustment of steering angle sensor neutral position

Nissan Rogue Service Manual / Brakes / Brake Control System / Basic inspection / Adjustment of steering angle sensor neutral position

Description

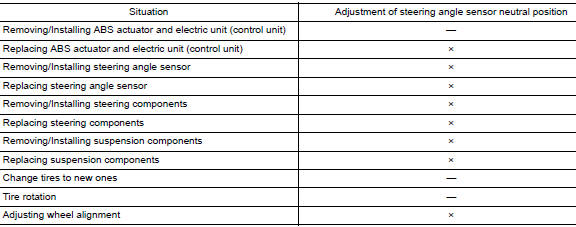

Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.

Description

Work Procedure

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

CAUTION: To adjust neutral position of steering angle sensor, make sure to use CONSULT.

(Adjustment cannot be done without CONSULT).

1.ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2.

2.PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

  1. On the CONSULT screen, touch “WORK SUPPORT” and “ST ANG SENSOR ADJUSTMENT” in order.
  2.  Touch “START”.

    CAUTION: Do not touch steering wheel while adjusting steering angle sensor.

  3.  After approximately 10 seconds, touch “END”.

    NOTE: After approximately 60 seconds, it ends automatically.

  4.  Turn ignition switch OFF, then turn it ON again.

    CAUTION: Be sure to perform above operation.

>> GO TO 3.

3.CHECK DATA MONITOR

  1.  Run vehicle with front wheels in straight-ahead position, then stop.
  2.  Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0±3.5°.

Is the steering angle within the specified range? YES >> GO TO 4.

NO >> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1.

4.ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

Are the memories erased? YES >> Inspection End.

NO >> Check the items indicated by the self-diagnosis.

Additional service when replacing abs actuator and electric unit (control unit)
Description When replaced the ABS actuator and electric unit (control unit), perform adjust the neutral position of steering angle sensor. Refer to BRC-72, "Work Procedure".   ...

Calibration of decel G sensor
Description CAUTION: Always perform the decel G sensor calibration before driving when the following operation is performed. NOTE: Yaw rate/side/decel G sensor calibration is performed when pe ...
