STEERING GEAR AND LINKAGE

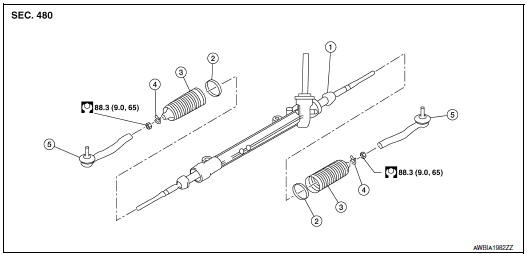

Exploded View

DISASSEMBLY AND ASSEMBLY

Exploded View

  1. Steering gear
  2.  Inner boot clamp
  3.  Boot
  4.  Outer boot clamp
  5.  Outer socket

Disassembly and Assembly

DISASSEMBLY

  1.  Remove outer socket lock nut and remove outer socket.
  2.  Remove inner and outer boot clamps and remove boot.

ASSEMBLY

  1.  Apply recommended grease to inner socket.
  2.  Install boot to steering gear.

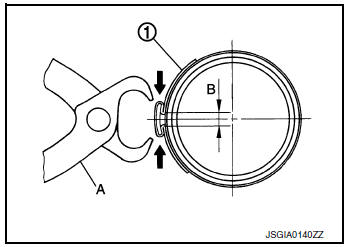

  3.  Install inner boot clamp (1) to boot and secure using Tool (A).

Assembly

Tool number : (KV40107300) ( — )

CAUTION:

  1.  Install outer boot clamp to boot.

CAUTION: Inspect boot and replace as necessary.

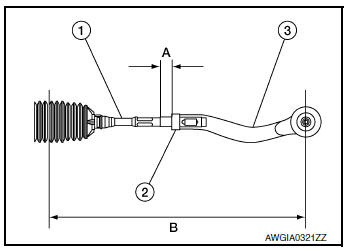

  1. Install outer socket (3) and lock nut (2) to achieve length (A).

    Check that inner socket (1) and outer socket (3) measure to standard length (B), then tighten lock nut (2) to the specified torque. Check length again after tightening lock nut (2).

Assembly

B : Refer to ST-19, "Steering Gear".

CAUTION:

Steering gear and linkage
