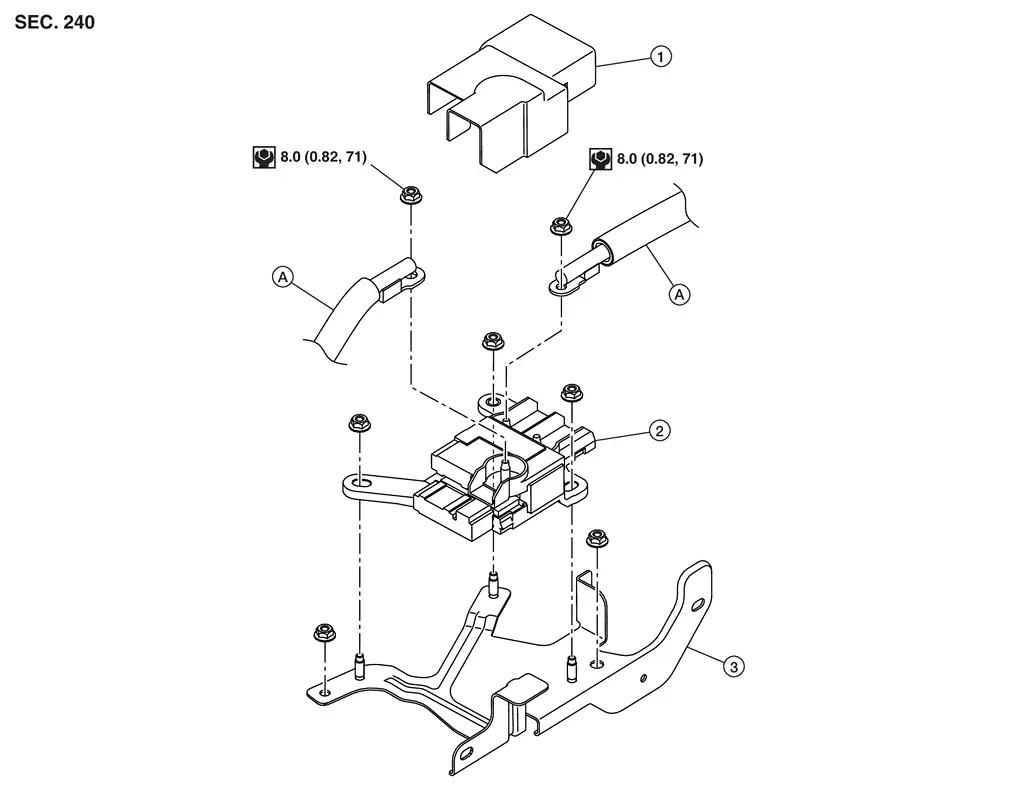

Exploded View

1. Fusible link box cover 2. Fusible link box (12V sub battery) (lithium ion battery) 3. Fusible link box bracket
A. Positive cable

Removal and Installation

REMOVAL

Disconnect the 12V battery negative terminal. Refer to Exploded View.

Remove the rear center luggage floor board and front center luggage floor board. Refer to Exploded View.

Remove the front luggage floor board and front luggage floor cover. Refer to Exploded View.

Release seatback and tilt seatback forward.

Remove fusible link box cover.

Remove nuts and remove positive cables from fusible link box (12V sub battery) (lithium ion battery).

Disconnect the harness connectors from the fusible link box (12V sub battery) (lithium ion battery).

Remove nuts and remove fusible link box (12V sub battery) (lithium ion battery).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform Required Procedure After Battery Disconnection.
