Nissan Rogue Service Manual: Removal and installation
BCM (BODY CONTROL MODULE)
Removal and Installation
For removal and installation of the BCM (Body Control Module), refer to BCS-75, "Removal and Installation".
PUSH-BUTTON IGNITION SWITCH
Removal and Installation
REMOVAL
- Remove NATS antenna amp. Refer to SEC-110, "Removal and Installation".

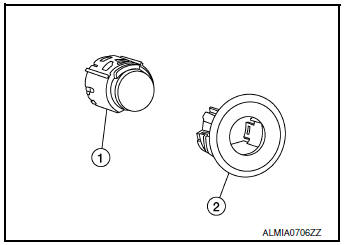

- Release pawls and remove the push-button ignition switch (1) from NATS antenna amp. (2).
INSTALLATION
Installation is in the reverse order of removal.
Symptom diagnosis
PUSH-BUTTON IGNITION SWITCH DOES NOT OPERATE
Description
Check that vehicle Operating Conditions are as listed in “Conditions of
Vehicle” below before starting Diagnosis
Procedure. Make sure ...
Charging System
...
