Nissan Rogue Service Manual: Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name

Description

— (J-39570) Chassis Ear

Locating the noise
— (J-50397) NISSAN Squeak and Rattle Kit

Repairing the cause of noise
— (J-46534) Trim Tool Set

Removing trim components

Commercial Service Tool

(TechMate No.) Tool name

Description

(J-39565) Engine Ear

Locating the noise
( — ) Hook and Pick Tool

Removes snap rings

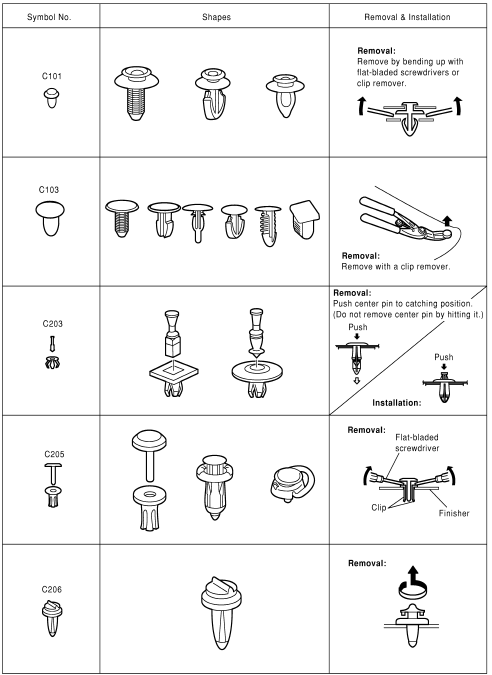

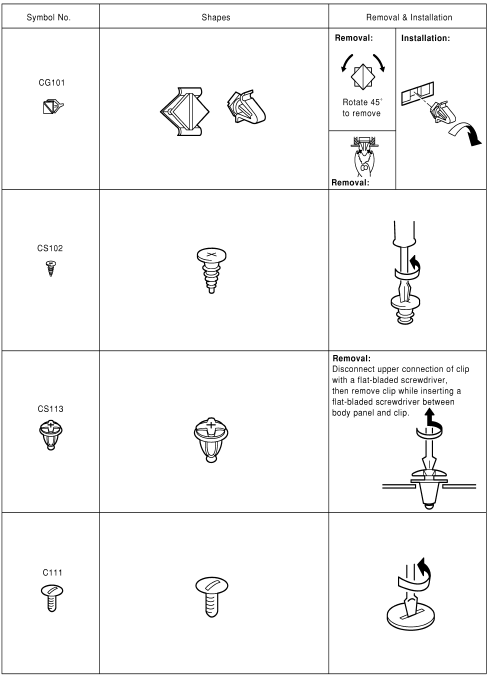

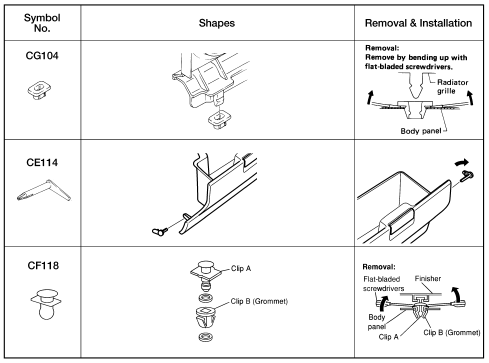

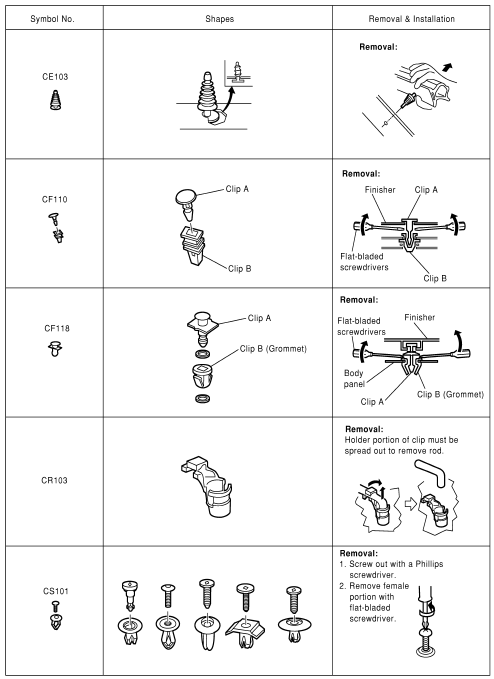

CLIP LIST

Descriptions for Clips

Replace any clips which are damaged during removal or installation.

Descriptions for Clips

Descriptions for Clips

Descriptions for Clips

Descriptions for Clips
