Nissan Rogue Service Manual: Meter system

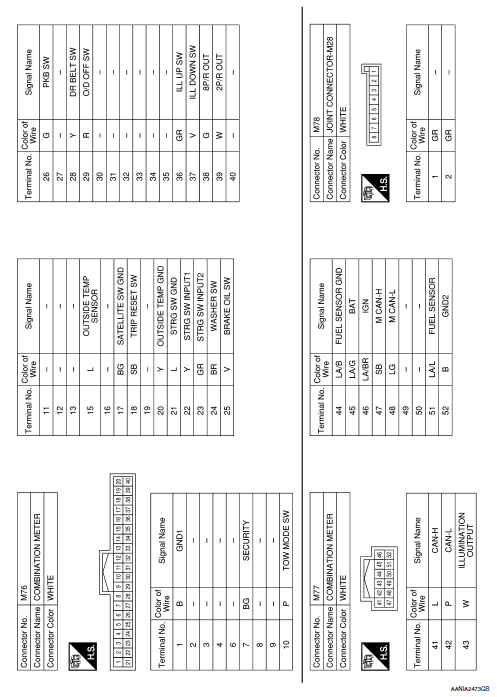

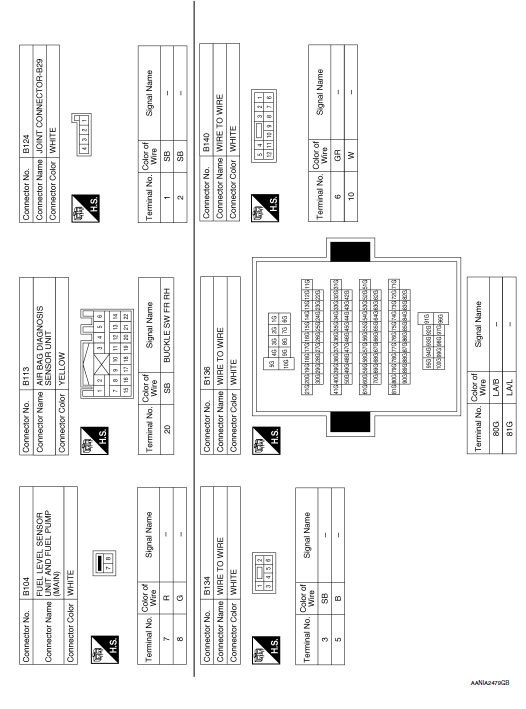

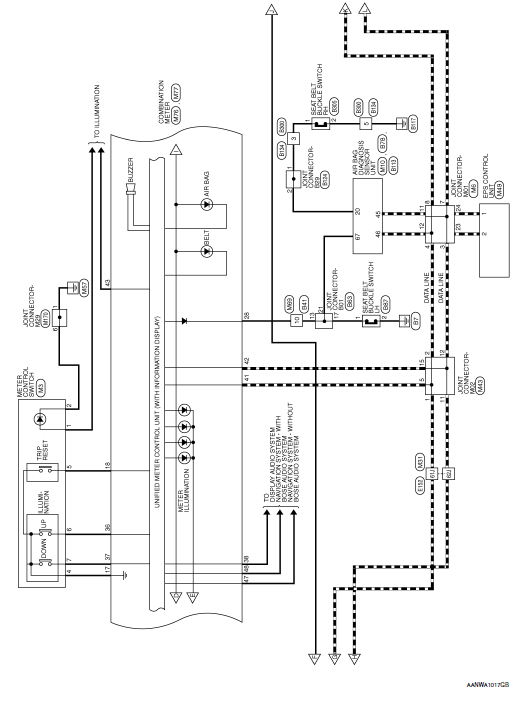

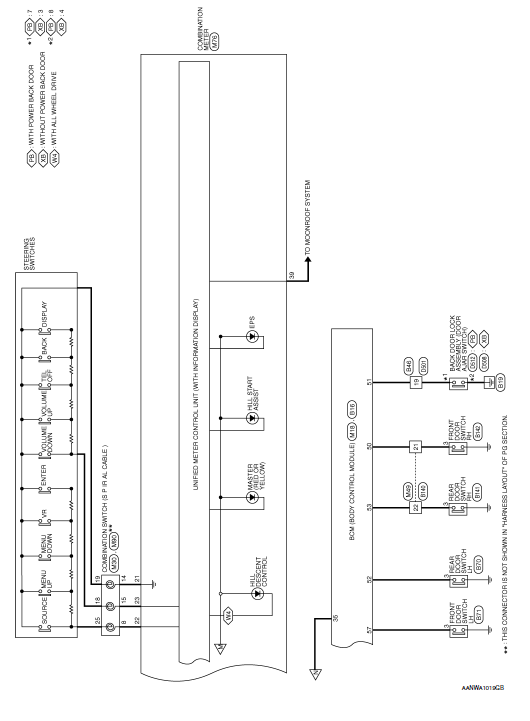

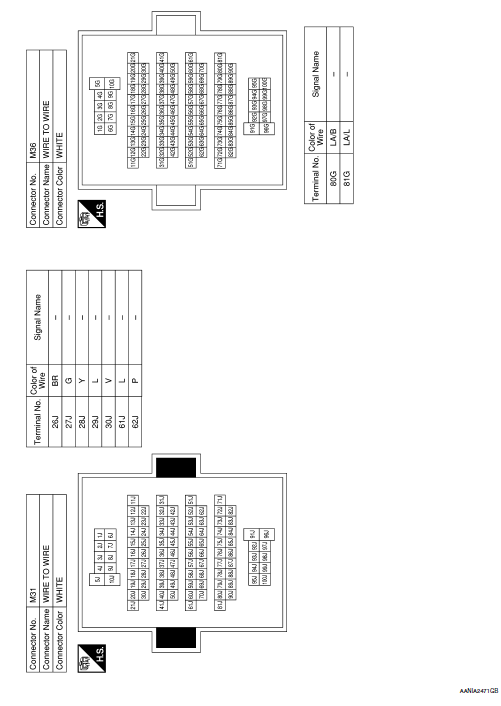

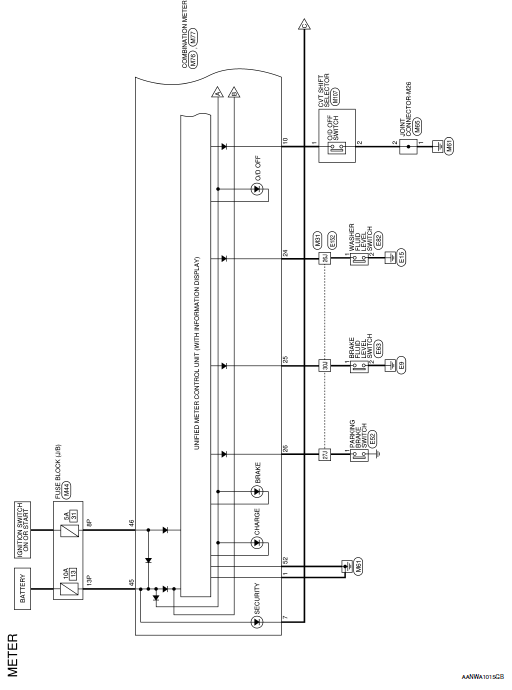

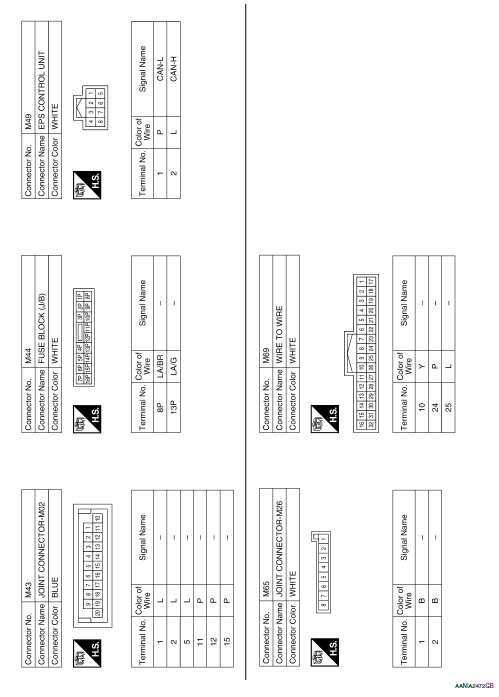

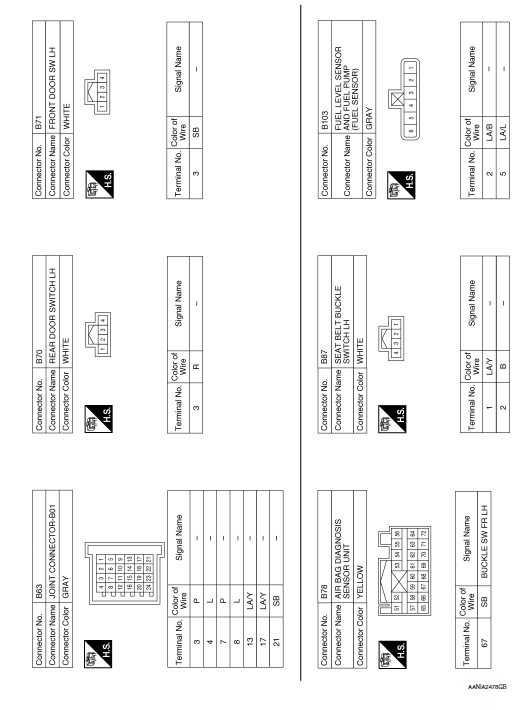

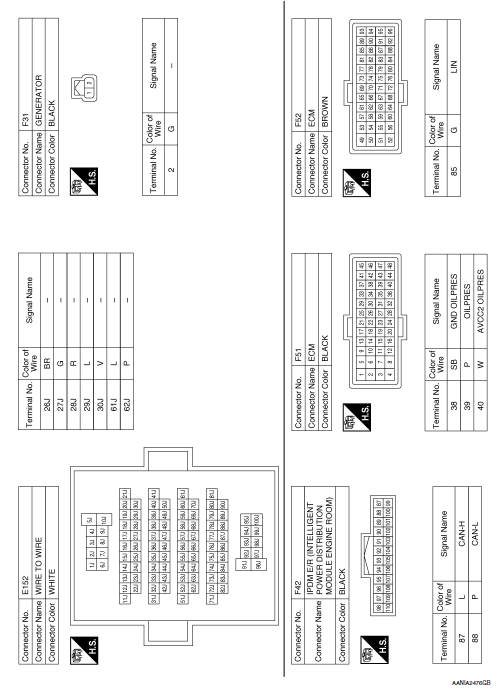

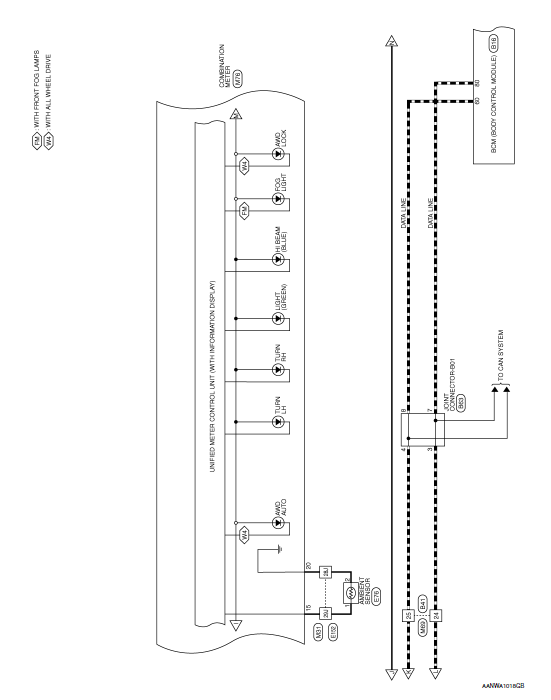

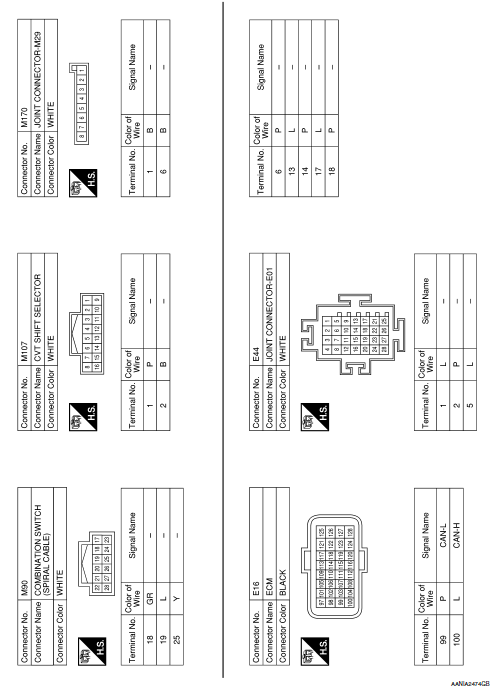

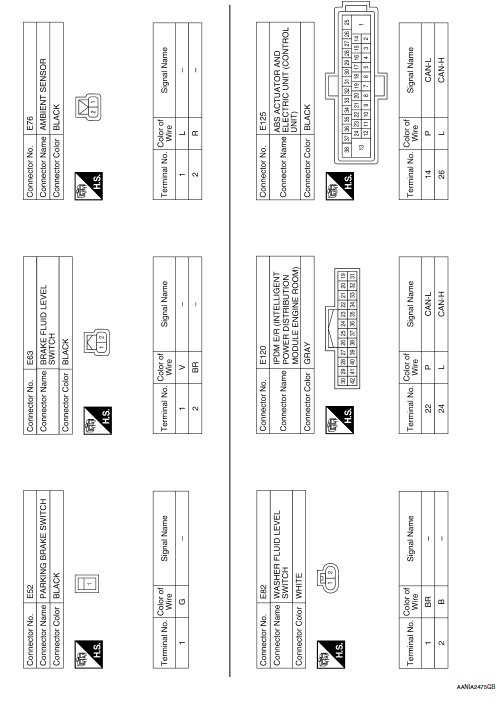

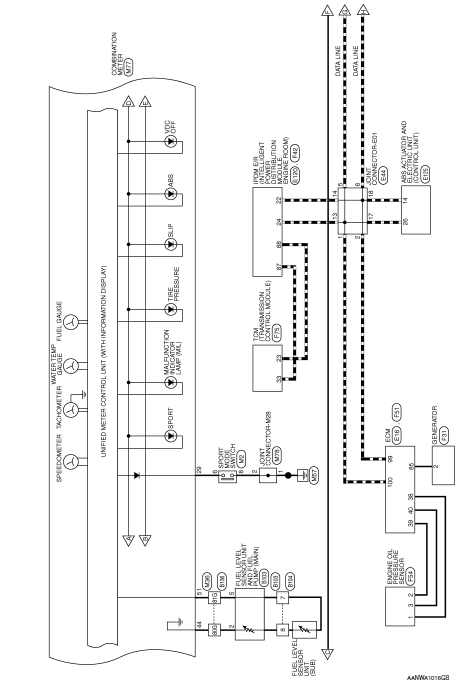

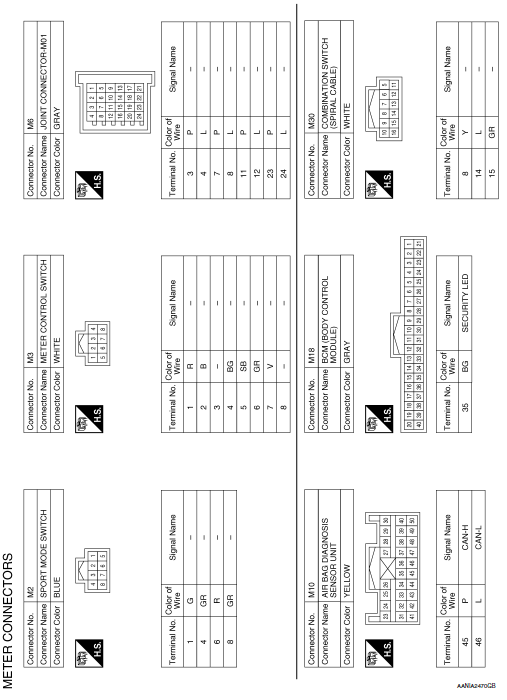

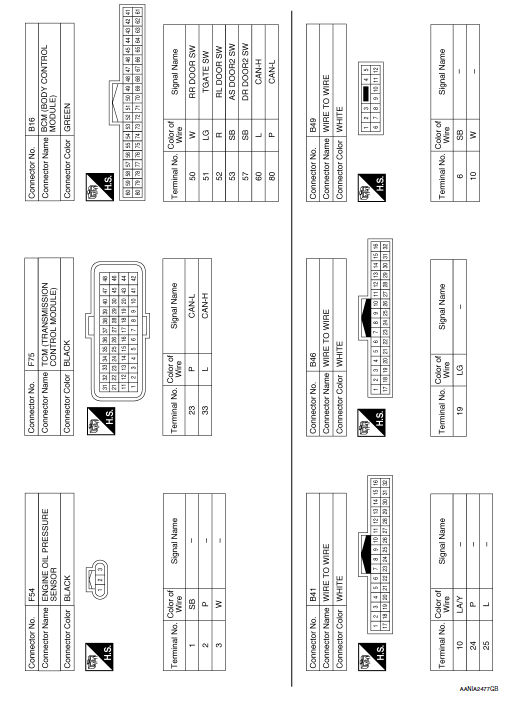

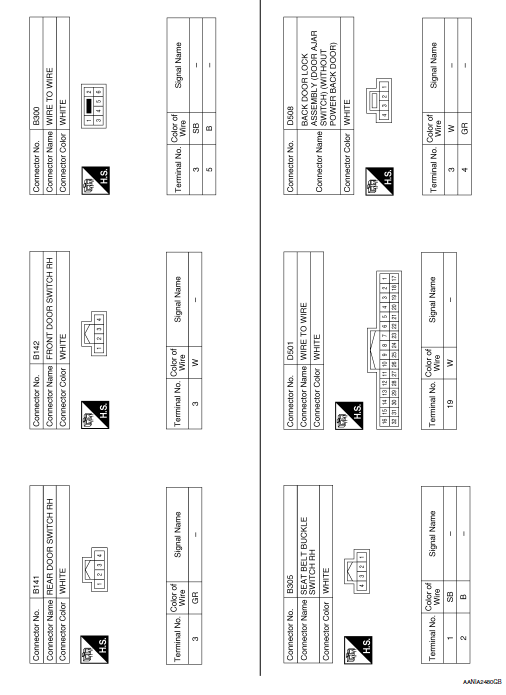

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram

Wiring diagram
...

Compass
Wiring Diagram ...
