Nissan Rogue Service Manual: Combination meter

Reference Value

VALUES ON THE DIAGNOSIS TOOL

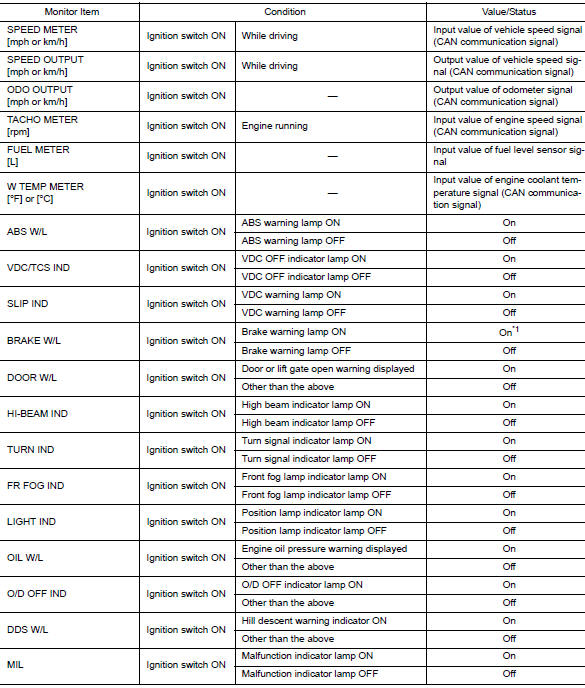

Values on the diagnosis tool

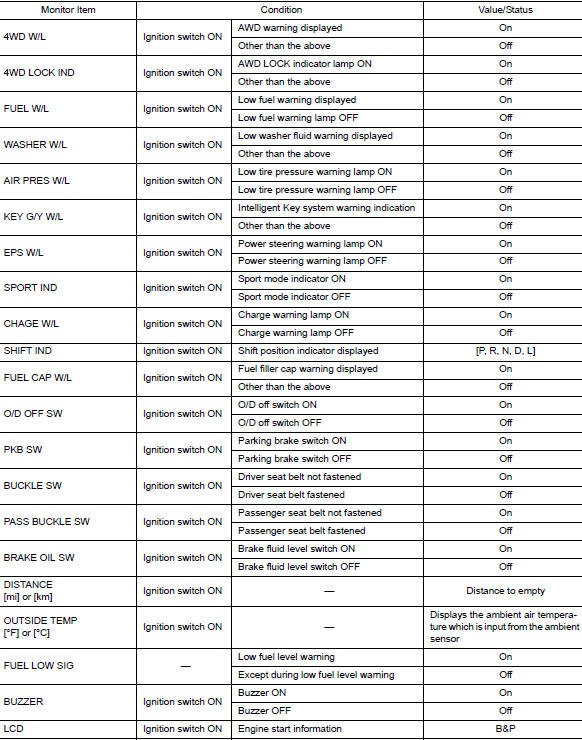

Values on the diagnosis tool

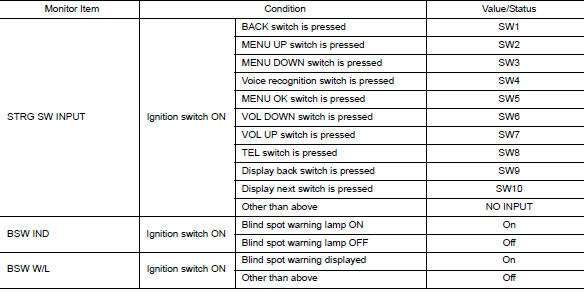

Values on the diagnosis tool

*: DDS (hill descent control)

NOTE: Some items are not available according to vehicle specification.

TERMINAL LAYOUT

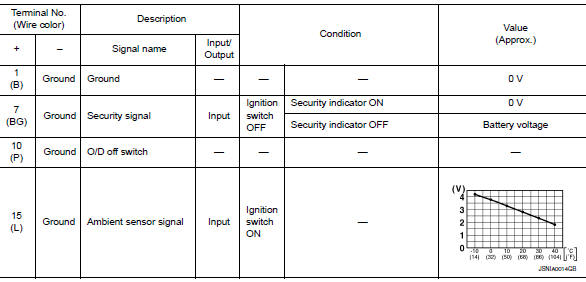

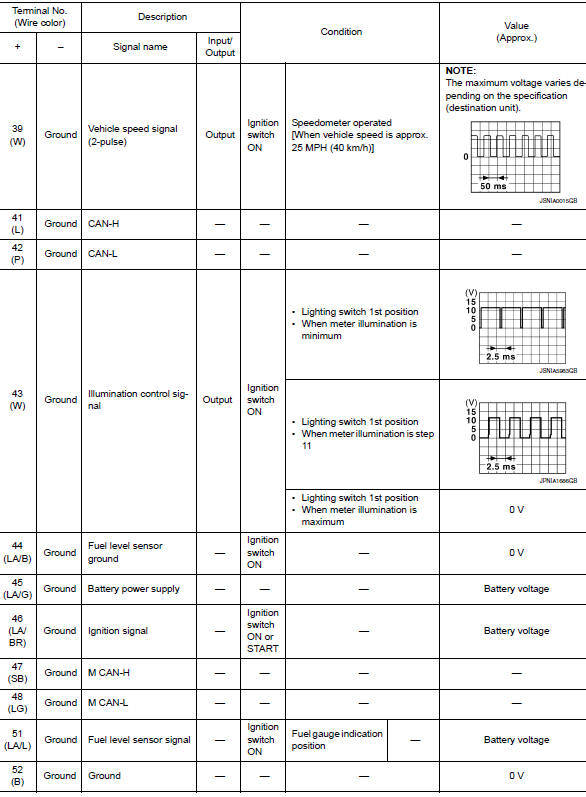

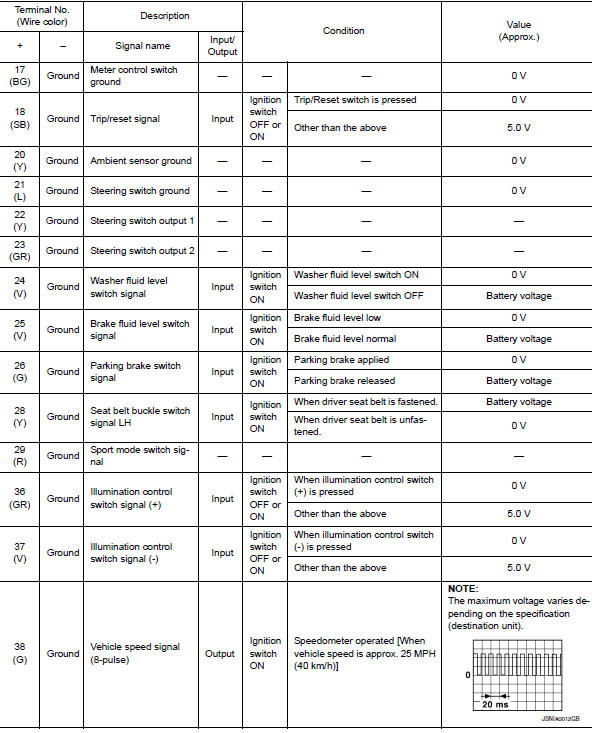

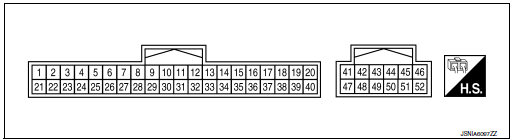

Terminal layout

PHYSICAL VALUES

Physical values

Physical values

Physical values

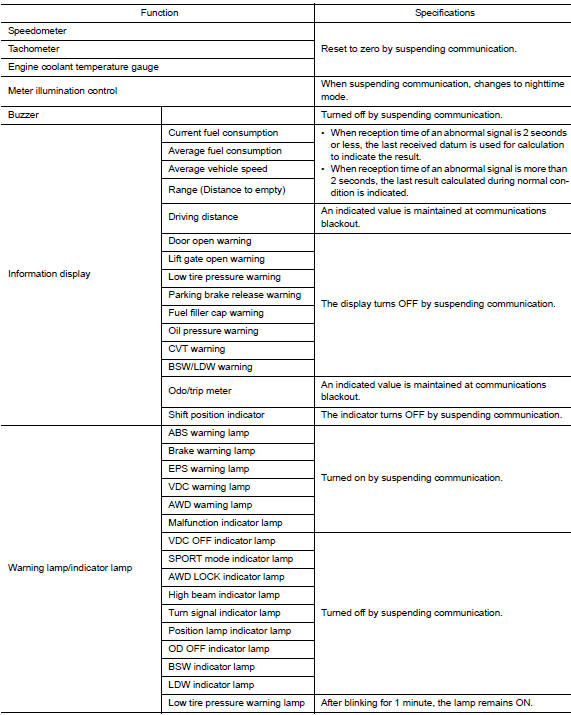

Fail-safe

The combination meter activates the fail-safe control if the CAN communication lines between each unit are malfunctioning.

Fail-safe

DTC Index

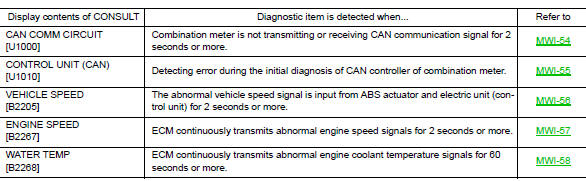

DTC Index

ECU diagnosis information
...

BCM (body control module)
List of ecu reference ...

Other materials:

Information display is malfunctioning
Diagnosis Procedure 1.CHECK DTC WITH ECM Check that DTC is not displayed. Is the inspection result normal? YES >> GO TO 2. NO >> Perform trouble diagnosis relevant to DTC indicated. 2.CHECK INFORMATION DISPLAY (ASCD) Refer to EC-475, "Component Function Check". Is ...

Adjustment of steering angle sensor neutral position
Description Refer to the table below to determine if adjustment of steering angle sensor neutral position is required. Work Procedure ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION CAUTION: To adjust neutral position of steering angle sensor, make sure to use CONSULT. (Adjustment ...

Structure and operation
Positive Crankcase Ventilation This system returns blow-by gas to the intake manifold. The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake manifold. During partial throttle operation of the engine, the intake manifold sucks the bl ...
