Nissan Rogue Owners Manual: Changing a flat tire
If you have a flat tire, follow the instructions below:
Stopping the vehicle
- Safely move the vehicle off the road and
away from traffic.
- Turn on the hazard warning flashers.
- Park on a level surface and apply the parking
brake. Move the shift lever to P (Park).
- Turn off the engine.
- Raise the hood to warn other traffic and to
signal professional road assistance personnel
that you need assistance.
- Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
- Make sure the parking brake is securely
applied and the shift lever is shifted into
P (Park).
- Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
- Never change tires if oncoming traffic is
close to your vehicle. Wait for professional
road assistance.
|

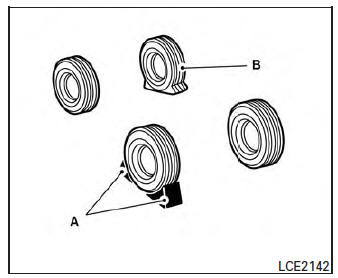

![](images/books/1/5/index.49.jpg)
- Blocks
- Flat tire
Blocking wheels
Place suitable blocks at both the front and back
of the wheel diagonally opposite the flat tire to
prevent the vehicle from moving when it is jacked
up.
WARNING Be sure to block the wheel as the vehicle
may move and result in personal injury. |
![Getting the spare tire and tools (if so equipped)](images/books/1/5/index.50.jpg)

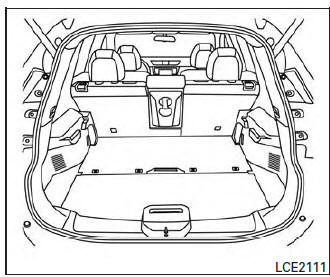

Getting the spare tire and tools (if so equipped)
Open the rear liftgate. Remove the Divide-n-Hide
floor. For additional information, refer to “Dividen-
Hide adjustable floor” in the “Instruments and
Controls” section of this manual.
Lift the floorboard.
![Getting the spare tire and tools (if so equipped)](images/books/1/5/index.51.jpg)

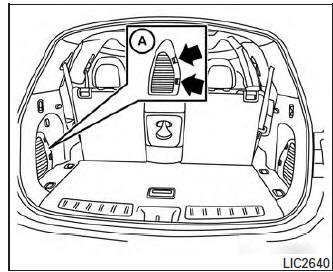

- The jack and tool kit are located in the storage
compartment to the left.
- Remove the storage door by pressing the
two release tabs A simultaneously.
![Getting the spare tire and tools (if so equipped)](images/books/1/5/index.52.jpg)

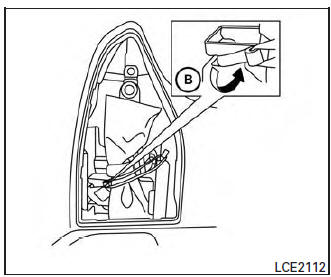

- Unhook the clip B restraining the jack and
tool kit.
- Remove the tool kit.
- Remove the jack.

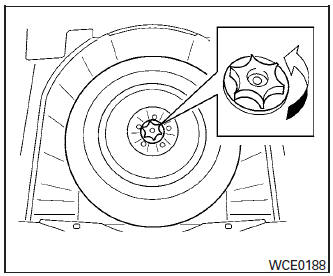

![Getting the spare tire and tools (if so equipped)](images/books/1/5/index.53.jpg)
- To loosen the bolt, turn counterclockwise.
- Once loosened, remove the bolt.
- Remove the spare tire.
- Once the flat tire is exchanged with the
spare tire, store the flat tire where the spare
tire was located.
- Turn the bolt clockwise to tighten.
![Changing the spare tire with BOSE® sub-woofer](images/books/1/5/index.54.jpg)

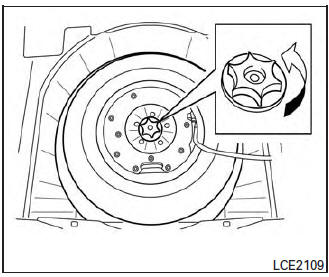

Changing the spare tire with BOSE® sub-woofer (if so equipped)
- To loosen the bolt, turn counterclockwise.
- Once loosened, remove the bolt.
![Changing the spare tire with BOSE® sub-woofer](images/books/1/5/index.55.jpg)

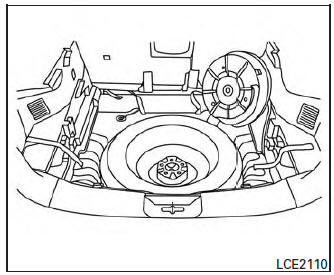

- Place the sub-woofer in the upper right corner
of the trunk, leaning against the 2nd row
passenger side seat.
- Remove the spare tire.
- Once the flat tire is exchanged with the
spare tire, store the flat tire where the spare
was located.
- Place the sub-woofer inside the flat tire.
- Turn the bolt clockwise to tighten.
![Jacking up vehicle and removing the damaged tire](images/books/1/5/index.56.jpg)
Jacking up vehicle and removing the damaged tire
WARNING
- Never get under the vehicle while it is
supported only by the jack. If it is necessary
to work under the vehicle, support
it with safety stands.
- Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other
vehicles. The jack is designed for lifting
only your vehicle during a tire change.
- Use the correct jack-up points. Never
use any other part of the vehicle for jack
support.
- Never jack up the vehicle more than
necessary.
- Never use blocks on or under the jack.
- Do not start or run the engine while
vehicle is on the jack. It may cause the
vehicle to move. This is especially true
for vehicles with limited slip
differentials.
- Do not allow passengers to stay in the
vehicle while it is on the jack.
- Never run the engine with a wheel(s) off
the ground. It may cause the vehicle to
move.
|
![Jacking up vehicle and removing the damaged tire](images/books/1/5/index.57.gif)

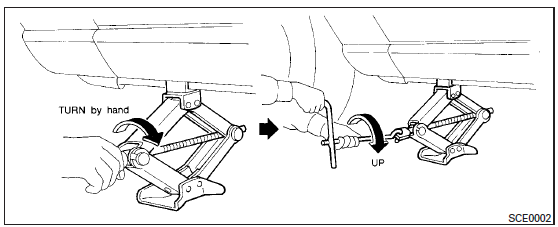

Always refer to the proper illustrations for the
correct placement and jack-up points for your
specific vehicle model and jack type.
Carefully read the caution label attached to
the jack body and the following instructions.
- Loosen each wheel nut 1 or 2 turns by
turning counterclockwise with the wheel nut
wrench. Do not remove the wheel nuts
until the tire is off the ground.

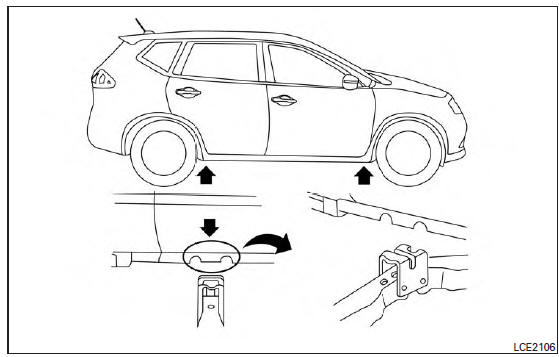

- Place the jack directly under the jack-up
point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the 2 notches in
the front or the rear as shown. Also fit the
groove of the jack head between the
notches as shown.
The jack should be used on firm and
level ground.
- To lift the vehicle, securely hold the jack lever
and rod with both hands. Carefully raise the
vehicle until the tire clears the ground. Remove
the wheel nuts, and then remove the
tire.
![Installing the spare tire (if so equipped)](images/books/1/5/index.58.jpg)
Installing the spare tire (if so equipped)
The spare tire is designed for emergency
use. For additional information, refer to
“Wheels and tires” in the “Maintenance
and do-it-yourself” section of this manual.
- Clean any mud or dirt from the surface between
the wheel and hub.
- Carefully put the spare tire on and tighten
the wheel nuts finger tight.

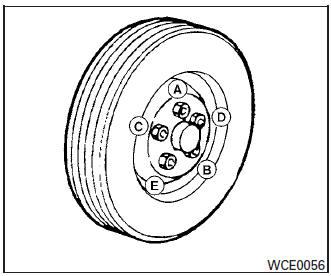

- With the wheel nut wrench, tighten wheel
nuts alternately and evenly as illustrated until
they are tight ( A , B , C , D , E ).
- Lower the vehicle slowly until the tire
touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated ( A , B , C , D ,
E ). Lower the vehicle completely.
- Securely store the jacking equipment in the
vehicle. When storing the tool kit, it is requested
to tighten the bag securely with the
attached band to prevent movement of the
tools, otherwise noise may occur.
As soon as possible, tighten the wheel nuts
to the specified torque with a torque
wrench.
Wheel nut tightening torque:
83 ft-lb (113 N·m)
The wheel nuts must be kept tightened to
specification at all times. It is recommended
that wheel nuts be tightened to
specifications at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km).
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.
Run-flat tires are those tires that can be used
temporarily if they are punctured. For additional
information, refer to “Run-flat tires” in “Maintenance
and do-it-yourself.”
