Nissan Rogue Service Manual: Wiring diagram

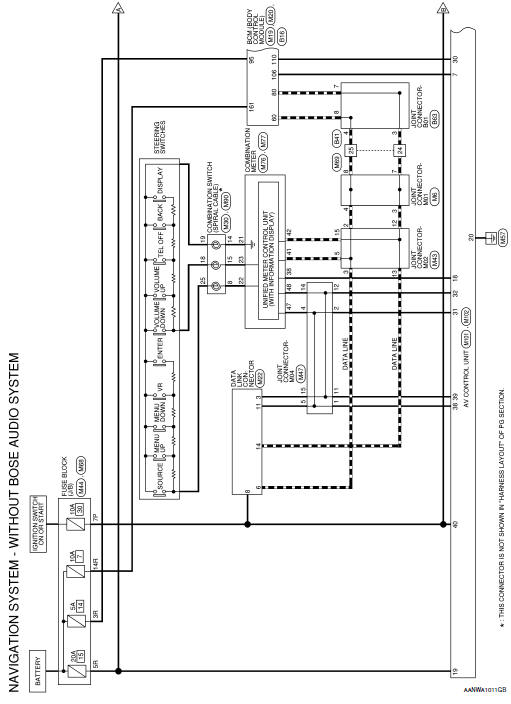

NAVIGATION WITHOUT BOSE

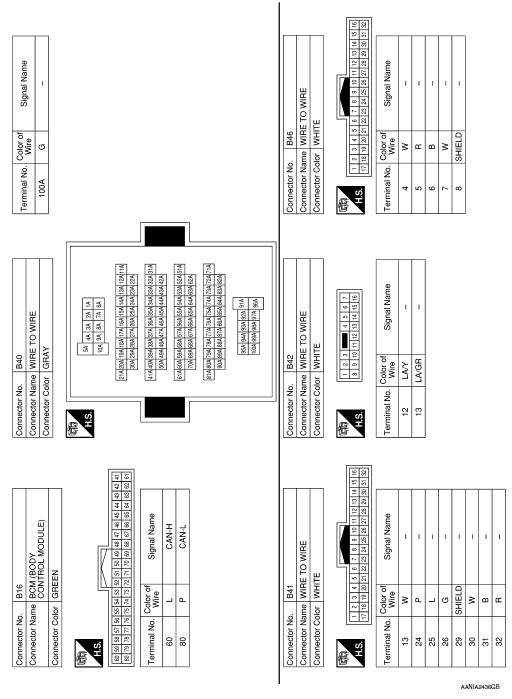

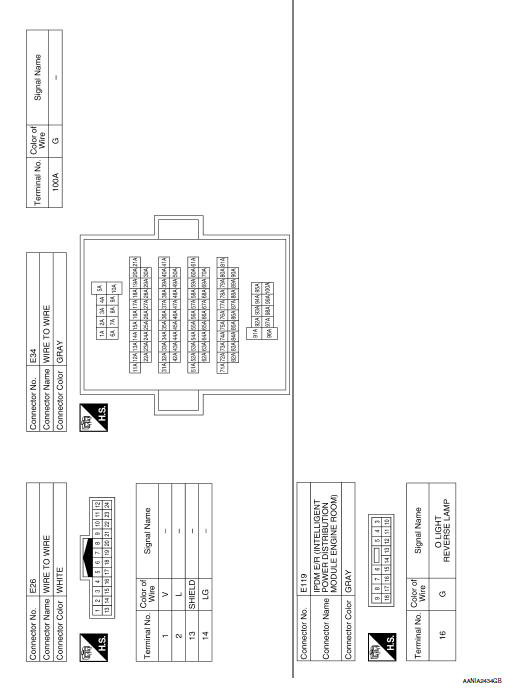

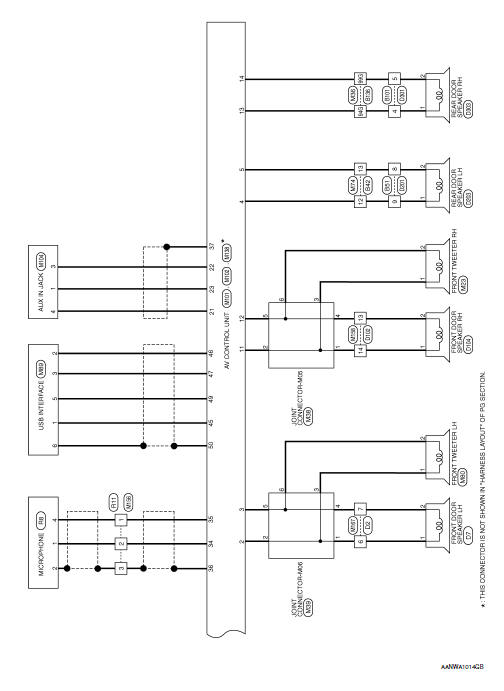

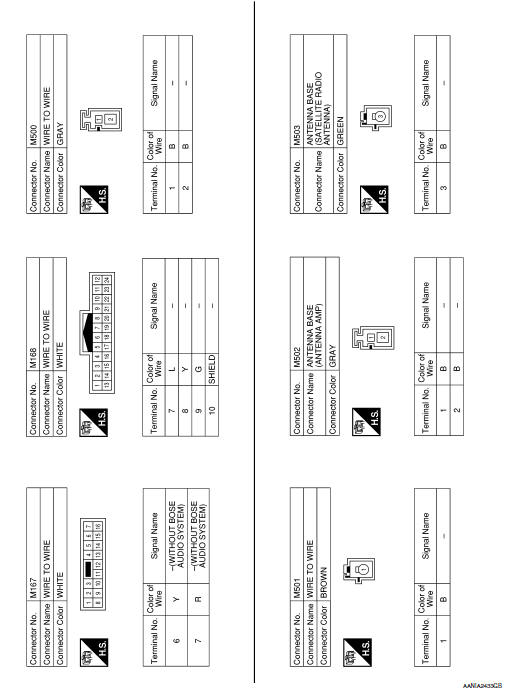

Wiring Diagram

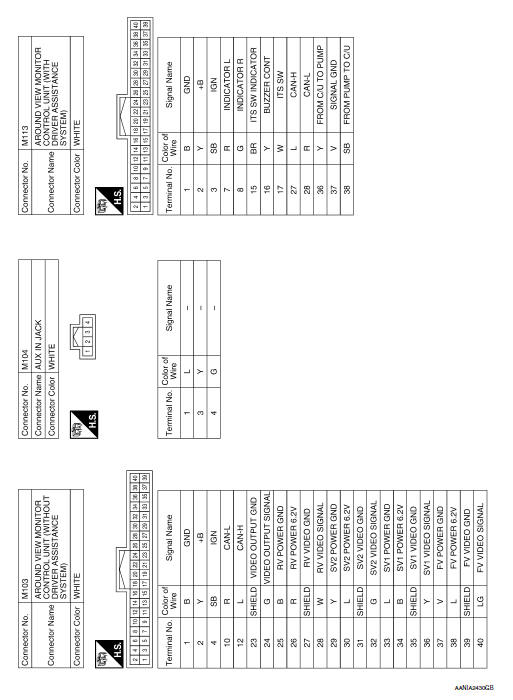

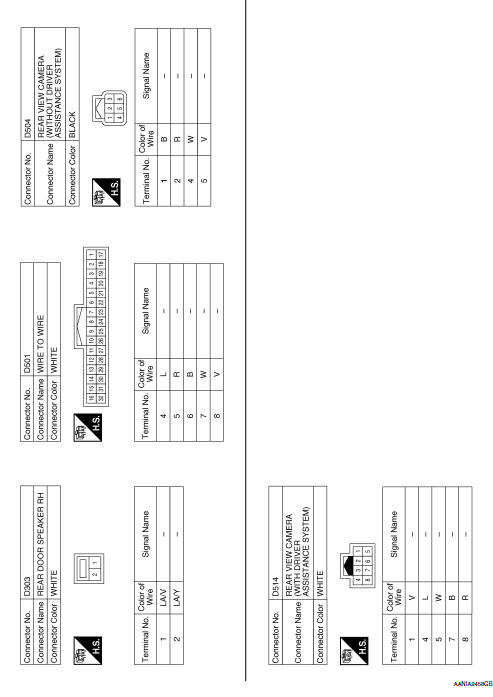

Wiring Diagram

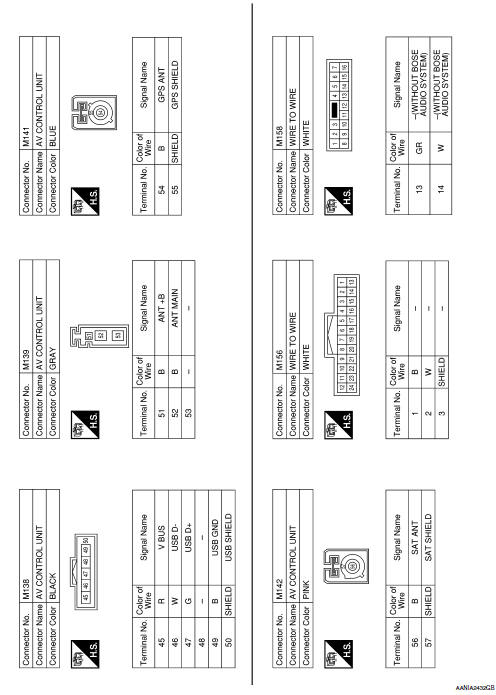

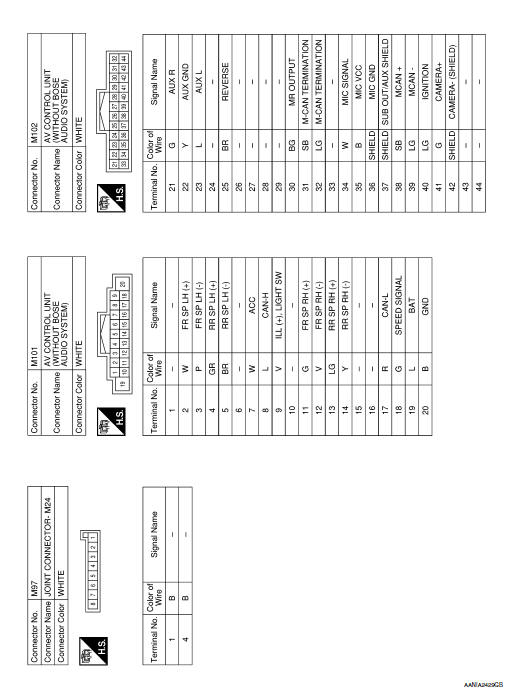

Wiring Diagram

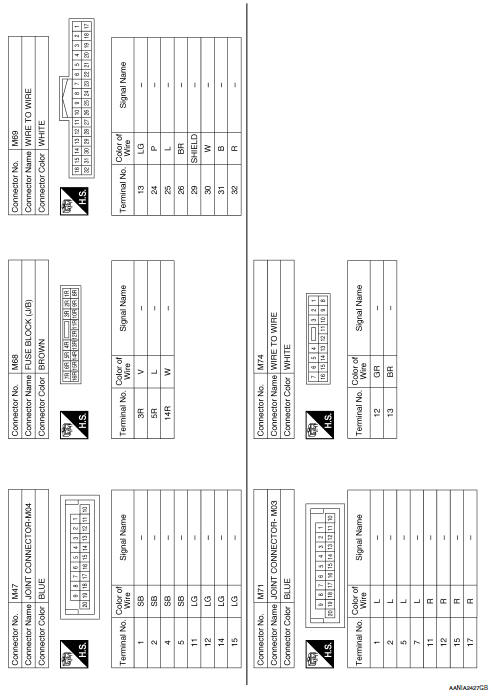

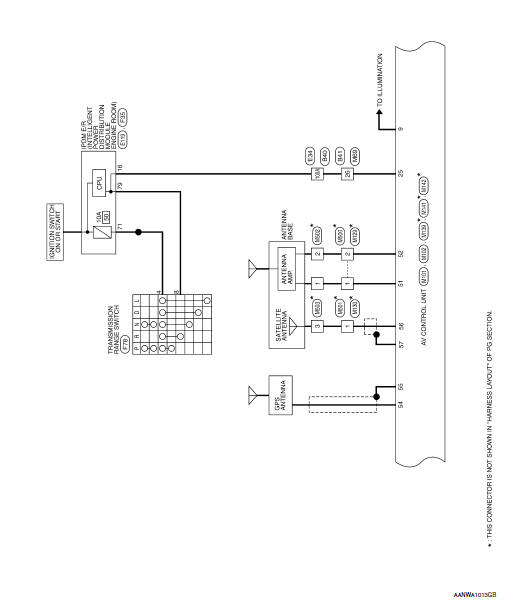

Wiring Diagram

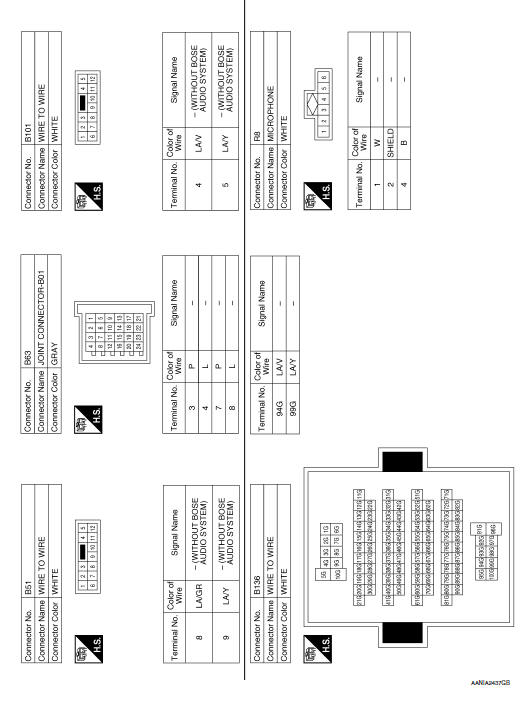

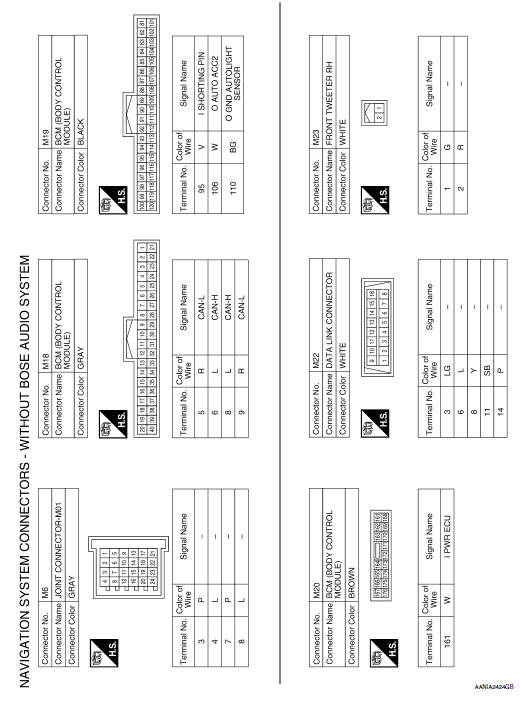

Wiring Diagram

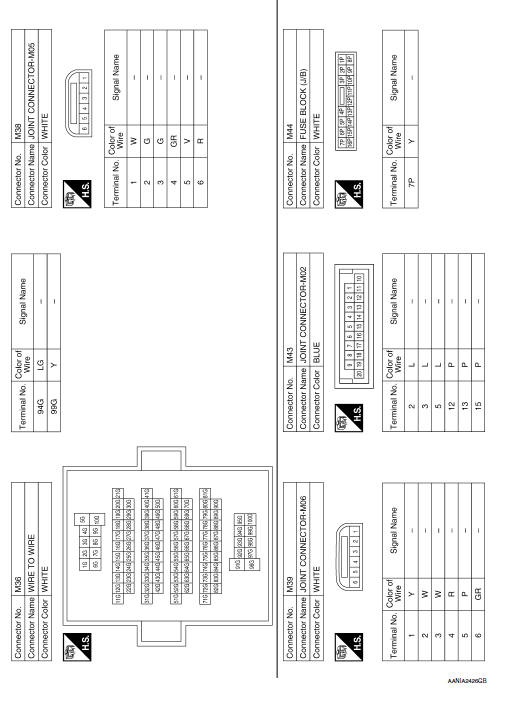

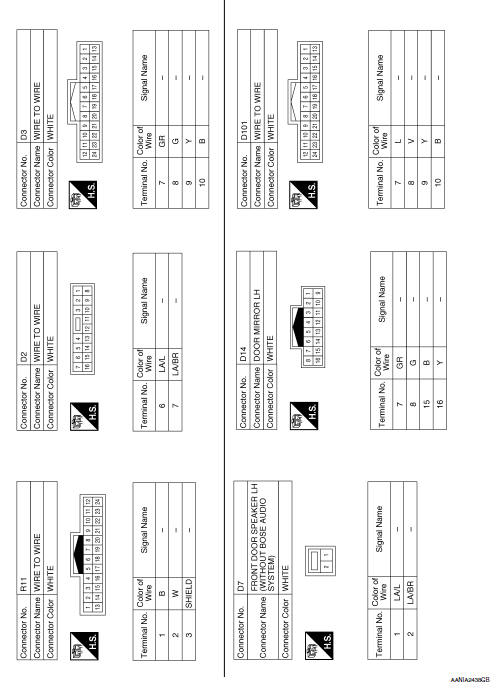

Wiring Diagram

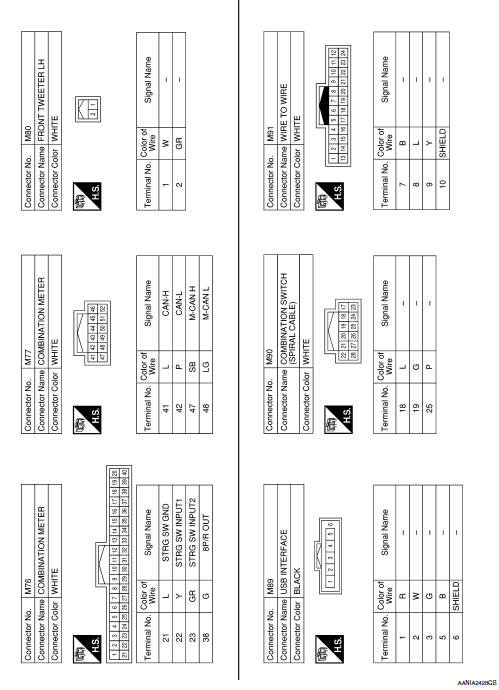

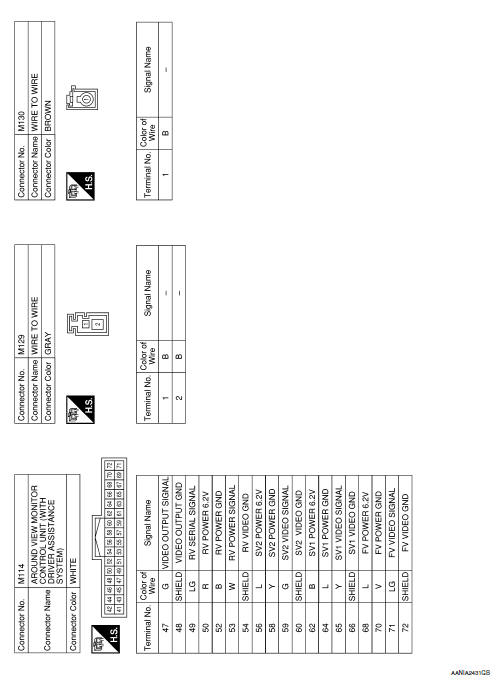

Wiring Diagram

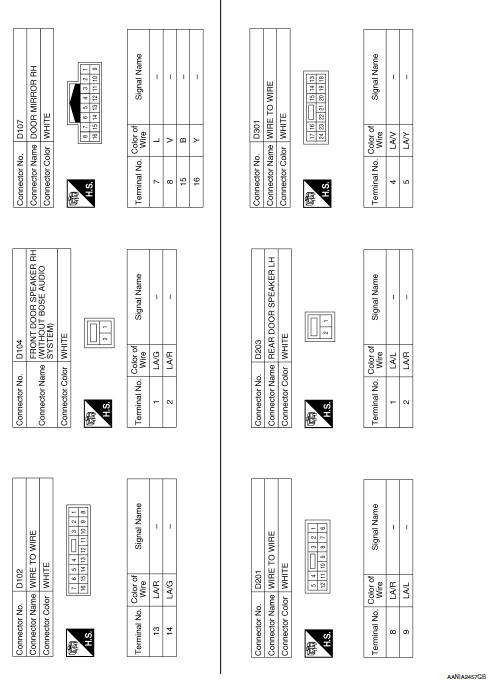

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
AV CONTROL UNIT Reference Value VALUES ON THE DIAGNOSIS TOOL TERMINAL LAYOUT PHYSICAL VALUES DTC Index AROUND VIEW MONITOR CONTROL UNIT WITHOUT DRIVER ASSISTANCE SYSTE ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.GET INFORMATION FOR SYMPTOM Get detailed information from the customer about the symptom (the condition and the envi ...
