Nissan Rogue Service Manual: Wiring diagram

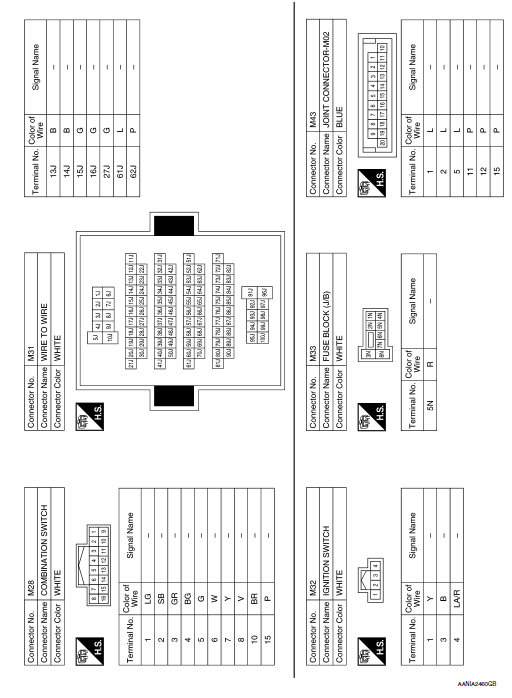

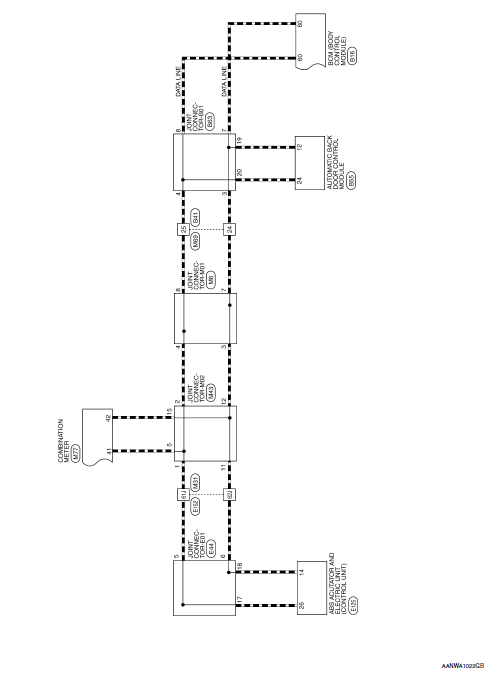

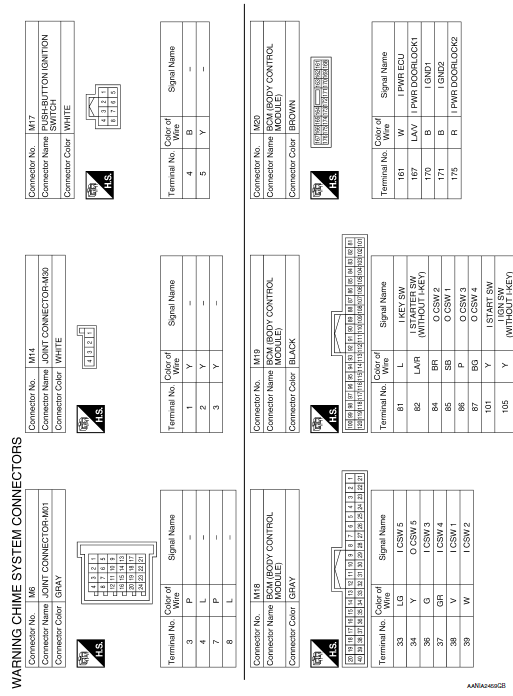

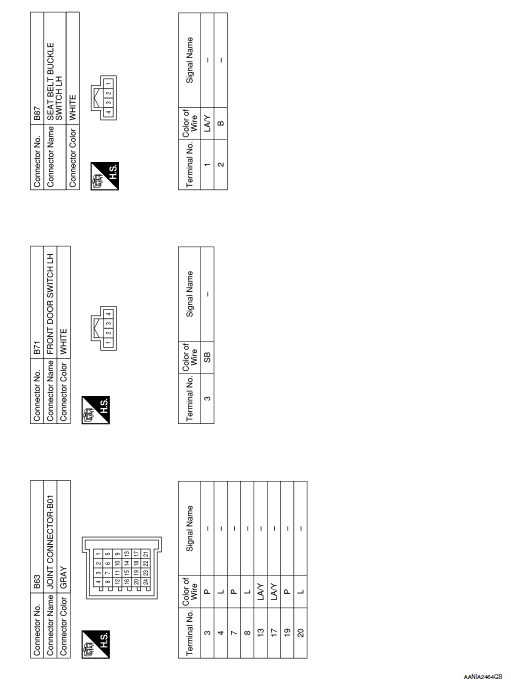

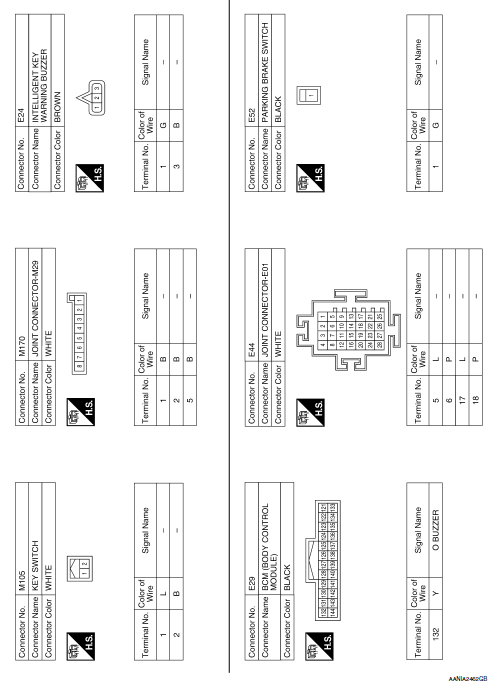

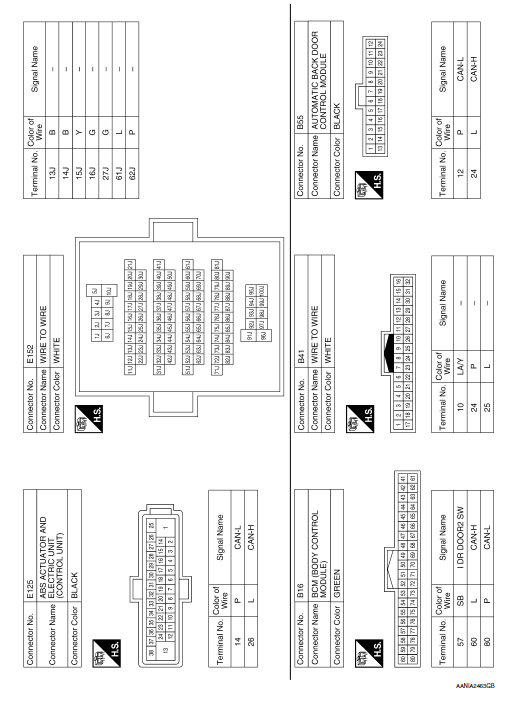

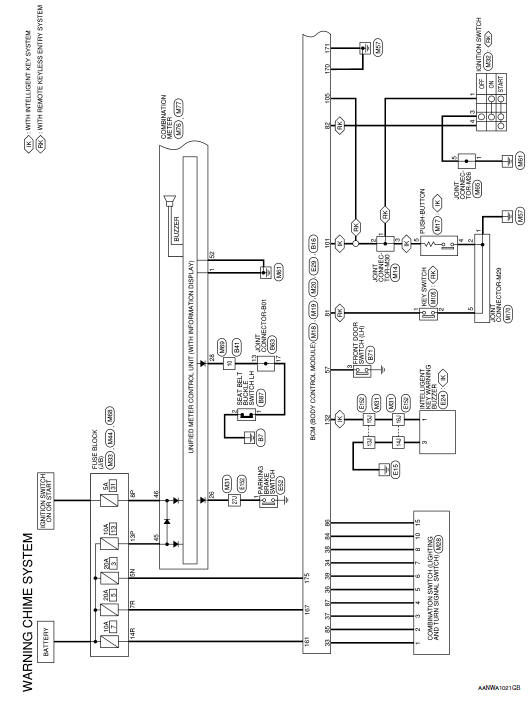

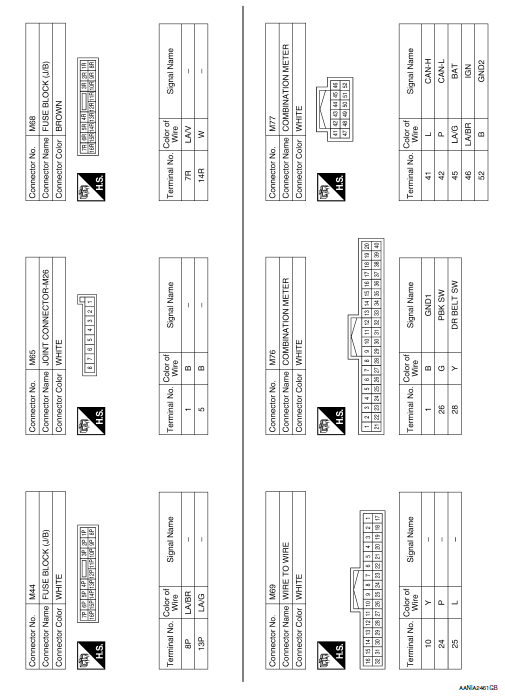

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BCM (body control module)
