Nissan Rogue Service Manual: Wiring diagram

REAR WINDOW DEFOGGER SYSTEM

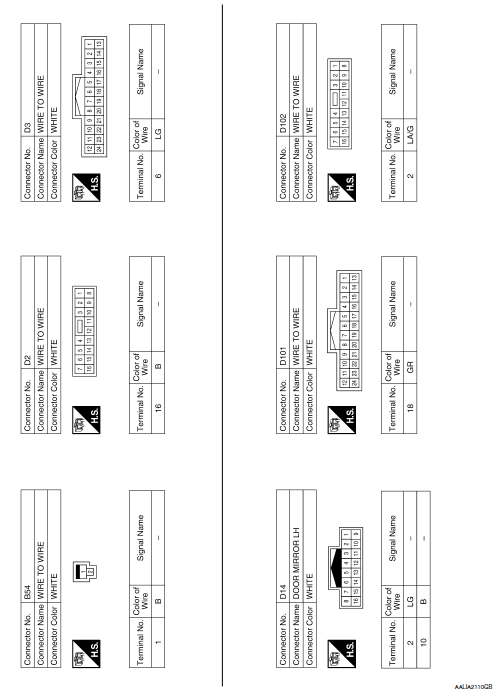

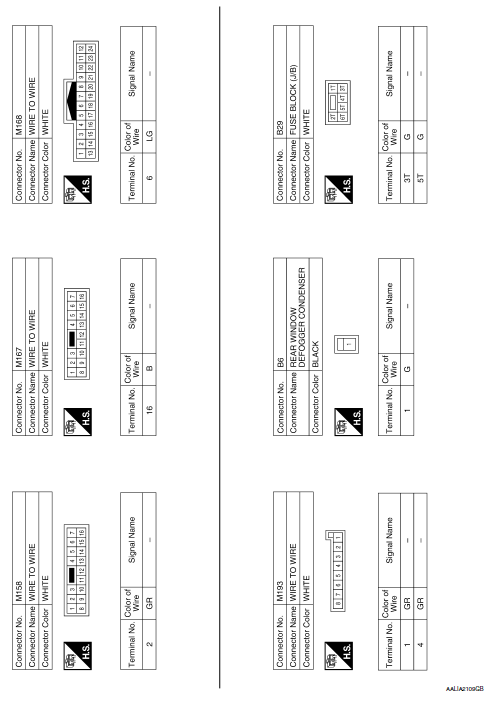

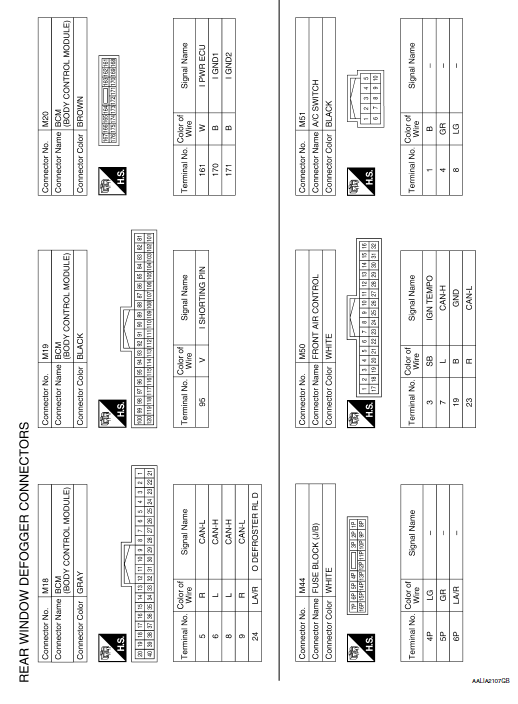

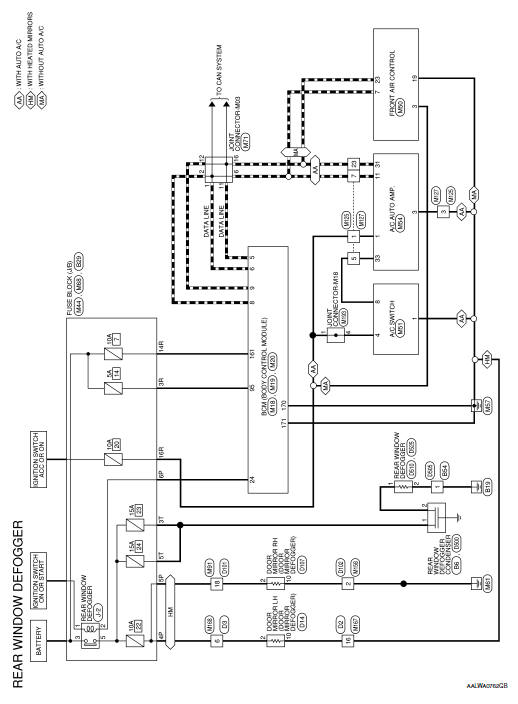

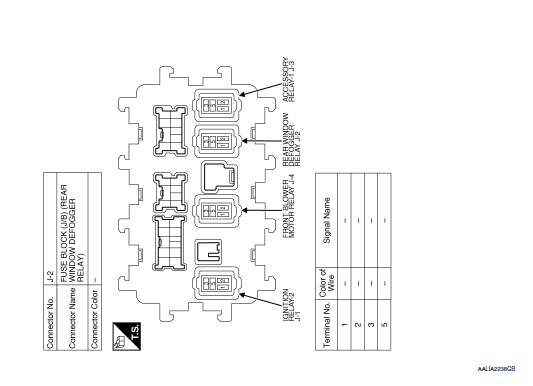

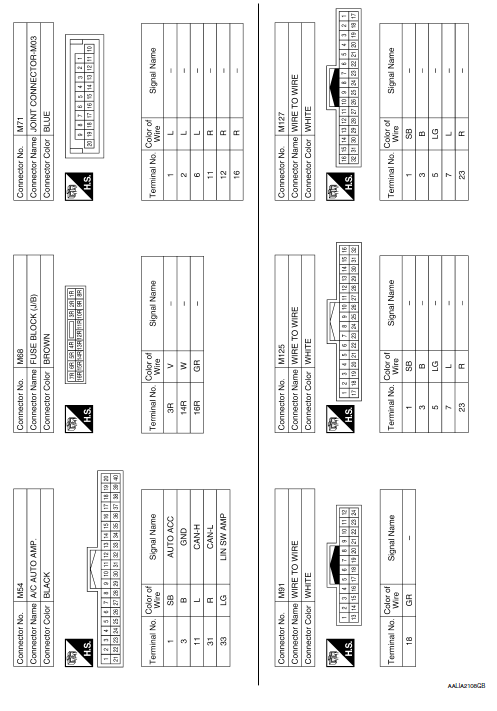

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram
