Nissan Rogue Service Manual: System description

COMPONENT PARTS

BODY CONTROL SYSTEM

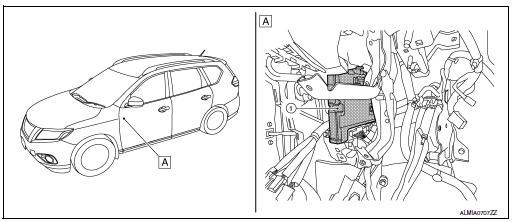

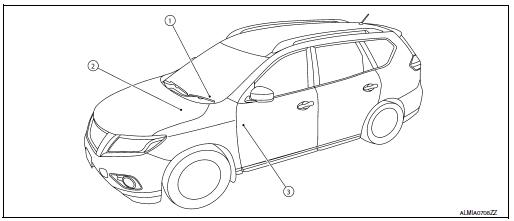

BODY CONTROL SYSTEM : Component Parts Location

Component Parts Location

  1. BCM
  2. Behind instrument panel (LH)

POWER CONSUMPTION CONTROL SYSTEM

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

Component Parts Location

  1. Combination meter Refer to MWI-6, "METER SYSTEM : Component Parts Location".
  2. IPDM E/R Refer to PCS-4, "Component Parts Location".
  3.  BCM Refer to BCS-79, "BODY CONTROL SYSTEM : Component Parts Location".

SYSTEM

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : System Description

OUTLINE

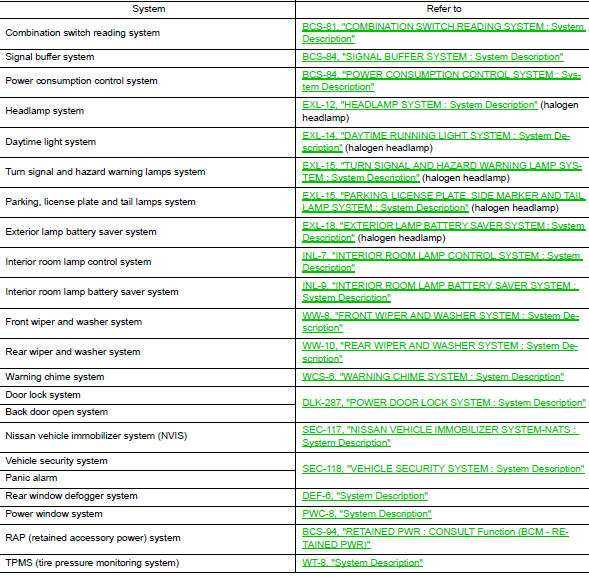

BCM FUNCTION LIST

Bcm function list

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM : System Description

SYSTEM DIAGRAM

System diagram

OUTLINE

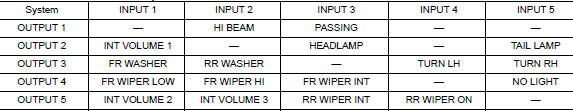

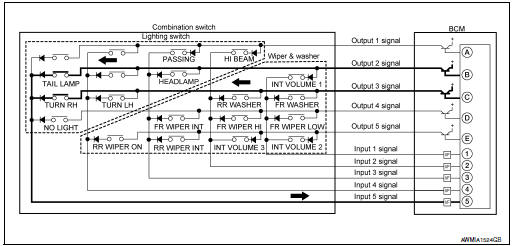

COMBINATION SWITCH MATRIX

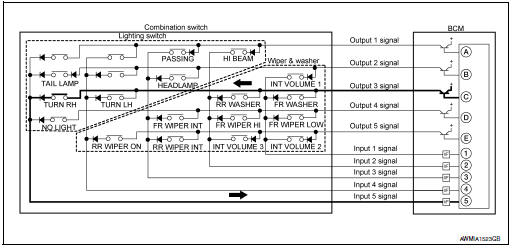

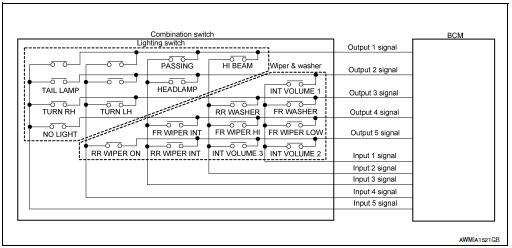

Combination switch circuit

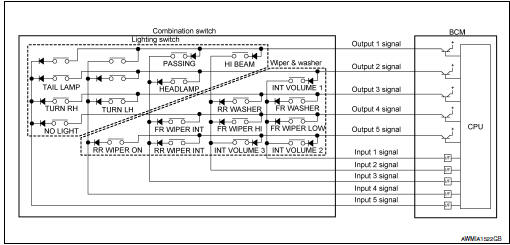

Combination switch circuit

Combination switch INPUT-OUTPUT system list

Combination switch input-output system lis

COMBINATION SWITCH READING FUNCTION

Description

Description

NOTE: BCM reads the status of the combination switch at 60 ms intervals when BCM is controlled at low power consumption control mode.

Description

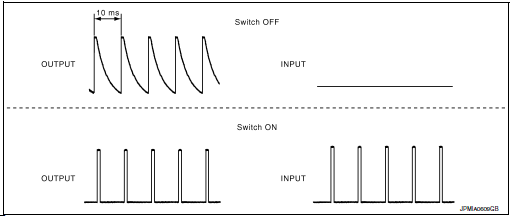

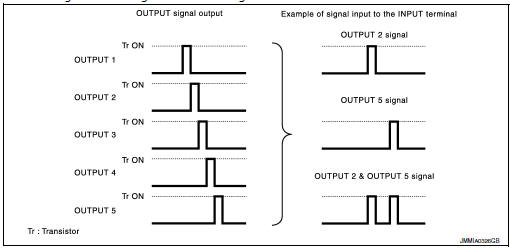

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TURN RH) is turned ON

Example 1: When a switch (TURN RH) is turned ON

Example 2: When some switches (TAIL LAMP, TURN RH) are turned ON

Example 2: When some switches (TAIL LAMP, TURN RH) are turned ON

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

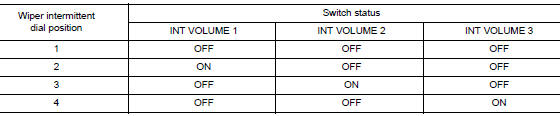

BCM judges the wiper intermittent dial 1 - 4 by the status of INT VOLUME 1, 2, and 3 switches.

Wiper intermittent dial position setting (front wiper intermittent operation)

SIGNAL BUFFER SYSTEM

SIGNAL BUFFER SYSTEM : System Description

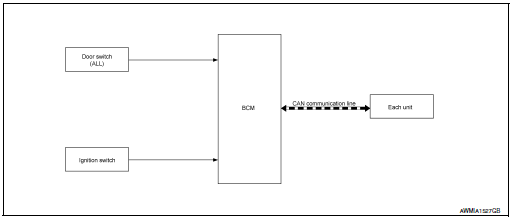

SYSTEM DIAGRAM

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

SIGNAL TRANSMISSION FUNCTION LIST

Signal name

Input

Output

Description

  • Ignition switch ON signal
  •  Ignition switch signal
Ignition switch IPDM E/R (CAN) Inputs the ignition switch signal and transmits the ignition switch status judged with BCM via CAN communication.
Door switch signal Any door switch
  • Combination meter (CAN)
  •  IPDM E/R (CAN)
Inputs the door switch signal and transmits it via CAN communication.

POWER CONSUMPTION CONTROL SYSTEM

POWER CONSUMPTION CONTROL SYSTEM : System Description

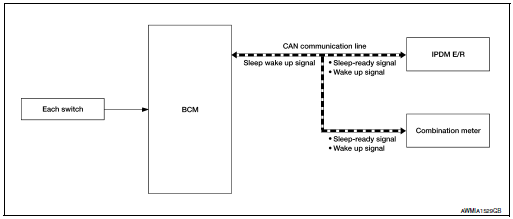

SYSTEM DIAGRAM

System diagram

OUTLINE

Normal mode (wake-up)

CAN communication sleep mode (CAN sleep)

Low power consumption mode (BCM sleep)

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.

SLEEP MODE ACTIVATION

Sleep condition

CAN sleep condition

BCM sleep condition

  • Receiving the sleep-ready signal (ready) from all units
  •  Ignition switch: OFF
  •  Vehicle security system alarm and panic alarm: No operation
  •  Warning lamp: No operation
  •  Brake switch: OFF
  •  Turn signal indicator lamp: No operation
  •  Exterior lamp: OFF
  •  Door lock status: No change
  •  CONSULT communication status: No communication
  •  Meter display signal: Non-transmission
  •  Door switch status: No change
  •  Rear window defogger: OFF
  • Interior room lamp battery saver: Time out
  •  RAP system: OFF
  •  NATS: No operation
  •  Tire pressure monitoring system: Stop

WAKE-UP OPERATION

BCM wake-up condition

CAN wake-up condition

  • Door lock assembly LH (key cylinder switch): Lock or unlock
  •  Door lock switch: OFF→ON
  •  Door unlock switch: OFF→ON
  •  Back door opener switch: OFF→ON
  • Receiving the sleep-ready signal (Not-ready) from any units
  •  Ignition switch: OFF→ON
  •  Hazard switch: OFF→ON
  •  PASSING switch: OFF→ON, ON→OFF
  •  TAIL LAMP switch: OFF→ON
  •  Driver door switch: OFF→ON, ON→OFF
  •  Passenger door switch: OFF → ON, ON → OFF
  •  Back door switch: OFF→ON, ON→OFF
  •  Stop lamp switch signal: ON

SHIPPING MODE CONTROL SYSTEM

SHIPPING MODE CONTROL SYSTEM : System Description

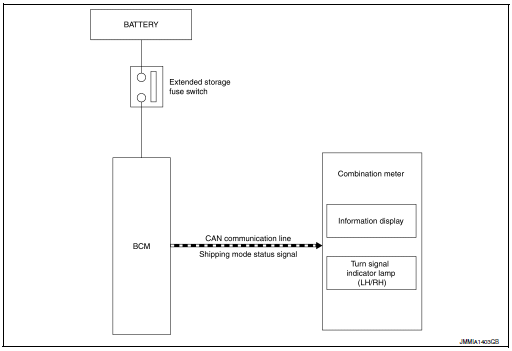

SYSTEM DIAGRAM

System diagram

DESCRIPTION

*: When shipping mode function operates, “SHIPPING MODE ON PUSH STORAGE FUSE” is displayed.

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode

Description

Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration
  • The vehicle specification can be read and saved.
  •  The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

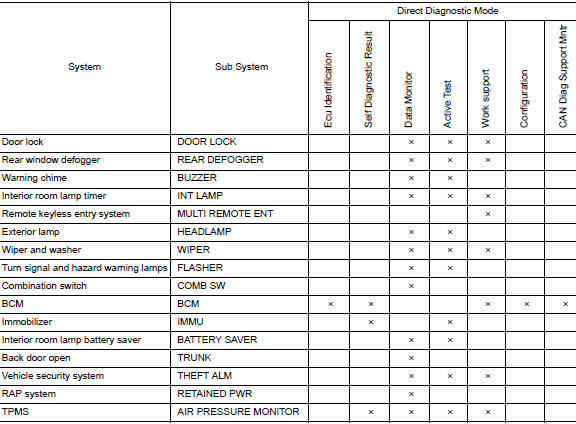

SYSTEM APPLICATION

BCM can perform the following functions.

System application

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

SELF DIAGNOSTIC RESULT

Refer to BCS-108, "DTC Index".

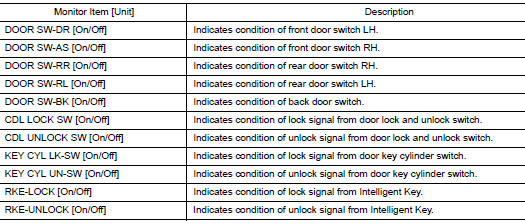

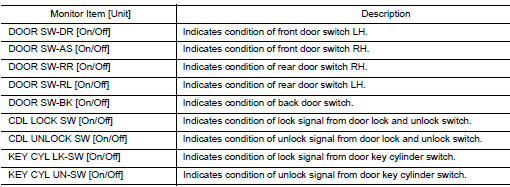

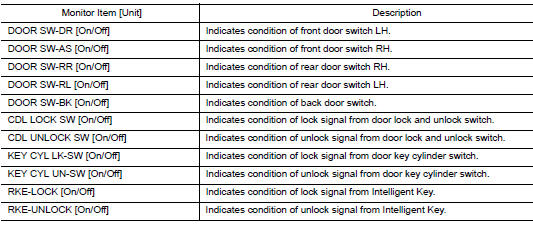

DATA MONITOR

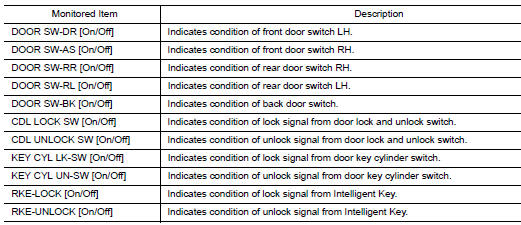

Data monitor

ACTIVE TEST

Active test

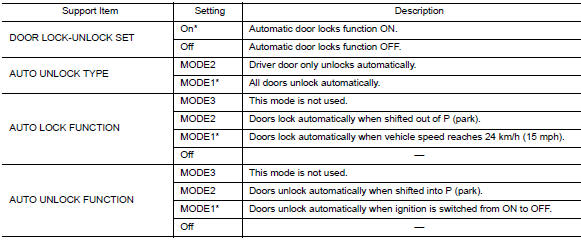

WORK SUPPORT

Work support

WORK SUPPORT

REAR DEFOGGER

REAR DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

* : Initial setting

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

DATA MONITOR

v

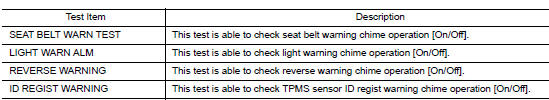

ACTIVE TEST

Active test

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

DATA MONITOR

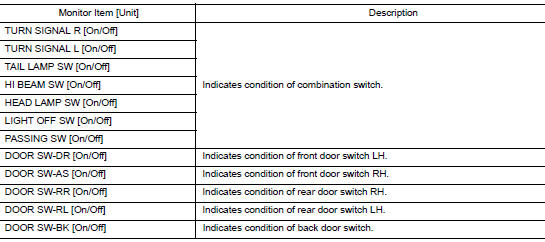

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial setting

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

WORK SUPPORT

Work support

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEADLAMP)

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

WIPER

WIPER : CONSULT Function (BCM - WIPER)

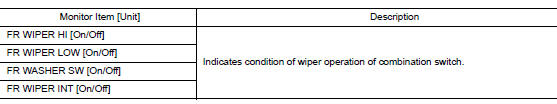

DATA MONITOR

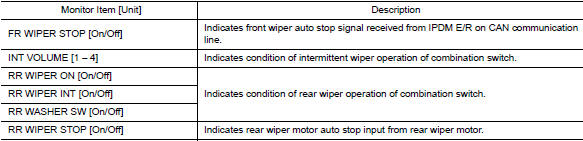

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial Setting

FLASHER

FLASHER : CONSULT Function (BCM - FLASHER)

DATA MONITOR

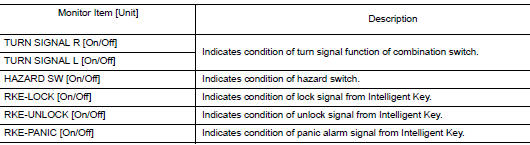

Data monitor

ACTIVE TEST

Active test

COMB SW

COMB SW : CONSULT Function (BCM - COMB SW)

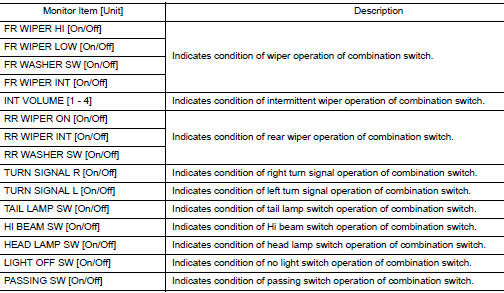

DATA MONITOR

BCM

BCM : CONSULT Function (BCM - BCM)

ECU IDENTIFICATION

The BCM part number is displayed.

SELF DIAGNOSTIC RESULT

Refer to BCS-108, "DTC Index".

WORK SUPPORT

Work support

CONFIGURATION

Refer to BCS-121, "CONFIGURATION (BCM) : Description".

CAN DIAG SUPPORT MNTR

Refer to LAN-14, "CAN Diagnostic Support Monitor".

IMMU

IMMU : CONSULT Function (BCM - IMMU)

SELF DIAGNOSTIC RESULT

Refer to BCS-108, "DTC Index".

ACTIVE TEST

Active test

WORK SUPPORT

Work support

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

TRUNK

TRUNK : CONSULT Function (BCM - TRUNK)

DATA MONITOR

v

THEFT ALM

THEFT ALM : CONSULT Function (BCM - THEFT ALM)

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

RETAINED PWR

RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

DATA MONITOR

Data monitor

AIR PRESSURE MONITOR

AIR PRESSURE MONITOR : CONSULT Function (BCM-AIR PRESSURE MONITOR)

NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

SELF DIAGNOSTIC RESULT

NOTE: Before performing Self Diagnostic Result, be sure to register the sensor ID or the actual malfunction may be different from that displayed on CONSULT.

Refer to BCS-108, "DTC Index".

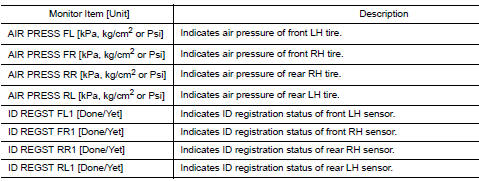

DATA MONITOR

Data monitor

Data monitor

ACTIVE TEST

v

WORK SUPPORT

Work support

Preparation
Special Service Tool The actual shape of the tools may differ from those tools illustrated here. Tool number (TechMate No.) Tool nam Description — (J-50190) ...

ECU diagnosis information
BCM Reference Value NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.  Activate ...
