Nissan Rogue Service Manual: System description

COMPONENT PARTS

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM : Component Parts Location

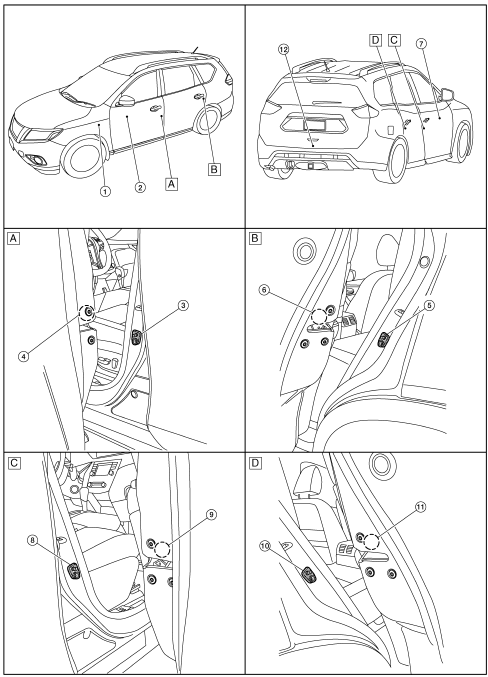

Component Parts Location

No

Component

Function

1 BCM Controls the door lock system.

Refer to BCS-79, "BODY CONTROL SYSTEM : Component Parts Location" for detailed installation location

2 Main power window and door lock/unlock switch DLK-22, "Door Lock and Unlock Switch (Driver Side)"
3 Front door switch LH DLK-286, "Front Door Switch"
4 Front door lock assembly LH DLK-25, "Front Door Lock Assembly (LH)"
5 Rear door switch LH DLK-285, "Rear Door Switch"
6 Rear door lock actuator LH Rear door lock actuator locks/unlocks the rear door latch assembly.
7 Front power window and door lock/unlock switch RH DLK-22, "Door Lock and Unlock Switch (Passenger Side)"
8 Front door switch RH DLK-286, "Front Door Switch"
9 Front door lock actuator RH Rear door lock actuator locks/unlocks the rear door latch assembly.
10 Rear door switch RH DLK-285, "Rear Door Switch"
11 Rear door lock actuator RH Rear door lock actuator locks/unlocks the rear door latch assembly.
12 Back door lock assembly (door ajar switch) DLK-21, "Back Door Lock Assembly"

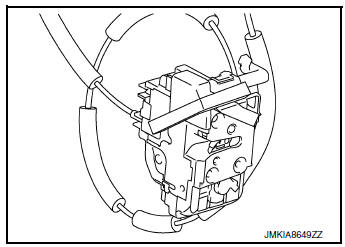

Front Door Lock Assembly (Driver Side)

Front Door Lock Assembly (Driver Side)

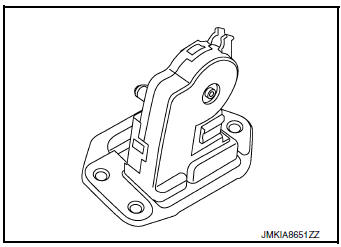

Back Door Lock Assembly

Back Door Lock Assembly

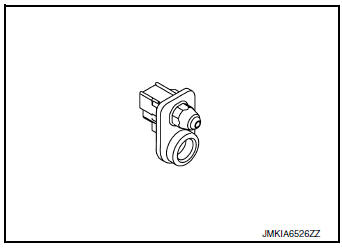

Rear Door Switch

Door switch detects open/close status of door and transmits door switch signal to BCM.

Rear Door Switch

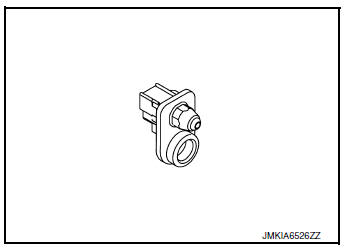

Front Door Switch

Door switch detects open/close status of door and transmits door switch signal to BCM.

Front Door Switch

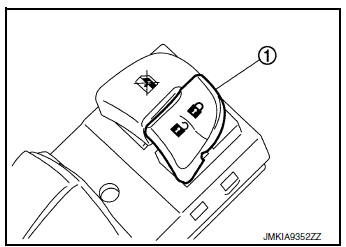

Door Lock and Unlock Switch

Door Lock and Unlock Switch

SYSTEM

POWER DOOR LOCK SYSTEM

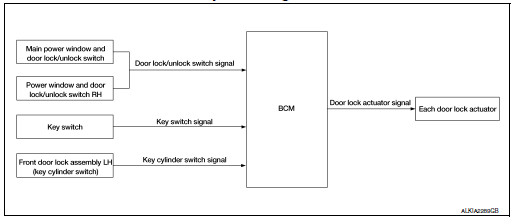

POWER DOOR LOCK SYSTEM : System Diagram

System Diagram

POWER DOOR LOCK SYSTEM : System Description

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door lock/unlock switch Door lock/unlock signal Door  lock/ k/unlock control Door lock actuator
Power window and door lock/ unlock switch RH
Front door lock key cylinder switch LH

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

Functions Available by Operating the Key Cylinder Switch on Driver Door

Selective Unlock Operation

Refer to BCS-87, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

REMOTE KEYLESS ENTRY SYSTEM

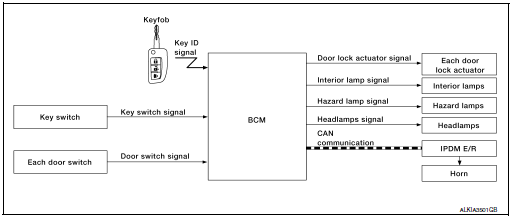

REMOTE KEYLESS ENTRY SYSTEM : System Diagram

System Diagram

REMOTE KEYLESS ENTRY SYSTEM : System Description

The remote keyless entry system can be locked and unlocked by pressing door lock and unlock button of keyfob.

DOOR LOCK AND UNLOCK OPERATION

OPERATION CONDITION

Remote controller operation

Operation condition

Lock/unlock Key switch is OFF. Mechanical key is removed from the ignition cylinder.

OPERATION AREA

To ensure that the keyfob works effectively, use within 10 m (33ft) range of the vehicle, however the operable range may differ according to surroundings.

SELECTIVE UNLOCK OPERATION

When door lock is unlocked, pressing LOCK button on keyfob once will lock all doors. When door lock is locked, pressing UNLOCK button on keyfob will unlock driver side door. Pressing UNLOCK button on keyfob second time within 5 seconds from the first time will unlock all doors.

HAZARD AND HORN REMINDER

When the doors are locked or unlocked by keyfob, power is supplied to sound horn and flash hazard warning lamps as a reminder The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

How to Change Hazard and Horn Reminder Modes

With CONSULT

Hazard and horn reminders can be changed using "WORK SUPPORT" mode in "MULTI REMOTE ENT".

How to Change Hazard and Horn Reminder Modes

How to Change Hazard and Horn Reminder Modes

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).

Hazard reminder can be changed using “HAZARD LAMP SET” mode in “WORK SUPPORT”.

Horn reminder can be changed using “HORN CHIRP SET” mode in “WORK SUPPORT”.

Refer to BCS-90, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".

Without CONSULT

Refer to Owner’s Manual for instructions.

AUTO DOOR LOCK OPERATION

When all doors are locked, ignition switch is OFF and key switch is OFF (mechanical key is removed from the ignition cylinder), doors are unlocked with keyfob button. When BCM does not receive the following signals within 1 minute, all doors are locked.

Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to BCS-90, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".

PANIC ALARM OPERATION

When key switch is OFF (mechanical key is removed from the ignition cylinder), BCM turns ON and OFF horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.

BCM outputs to headlamps and IPDM E/R for panic alarm signal (horn signal) via CAN communication lines.

The alarm automatically turns OFF after 25 seconds or when BCM receives any signal from keyfob.

Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.

Refer to BCS-90, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".

INTERIOR LAMP TIMER OPERATION

When the following conditions occur, remote keyless entry system turns on interior lamp for 15 seconds with input of UNLOCK signal from keyfob. For detailed description, refer to INL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : System Description".

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM

APPLICATION ITEM

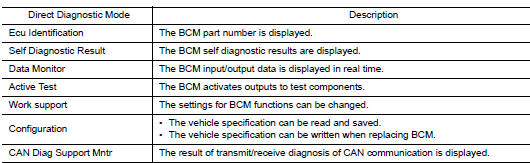

CONSULT performs the following functions via CAN communication with BCM.

Application item

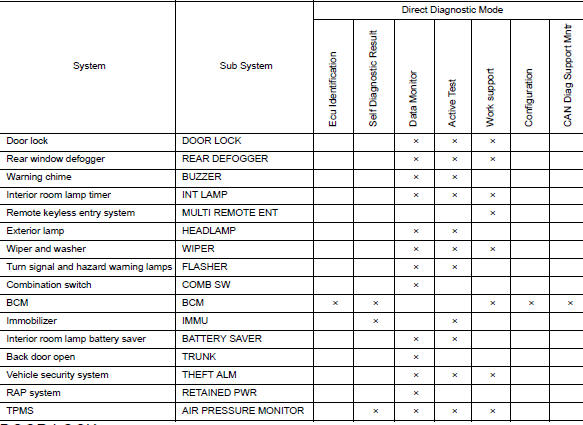

SYSTEM APPLICATION

BCM can perform the following functions.

System application

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

SELF DIAGNOSTIC RES

Refer to BCS-108, "DTC Index".

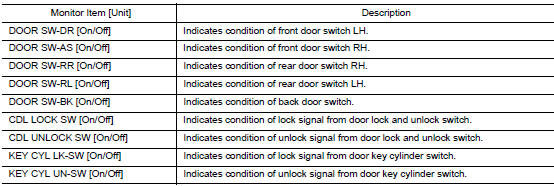

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

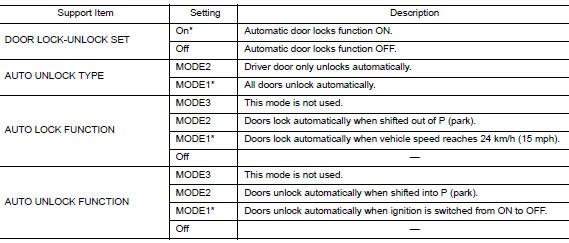

WORK SUPPORT

Work support

* : Initial setting

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

WORK SUPPORT

Work support

Preparation
Special Service Tool The actual shapes of the tools may differ from those illustrated here. Tool number (TechMate No.) Tool name Tool number (TechMate No.) Tool name ...

ECU diagnosis information
BCM, IPDM E/R List of ECU Reference ...
