Nissan Rogue Service Manual: Standardized relay

Description

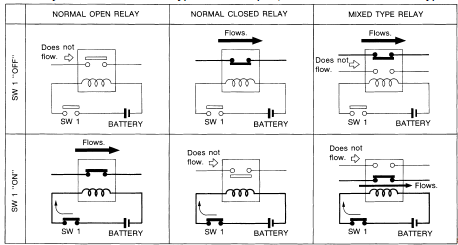

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

Normal open, normal closed and mixed type relays

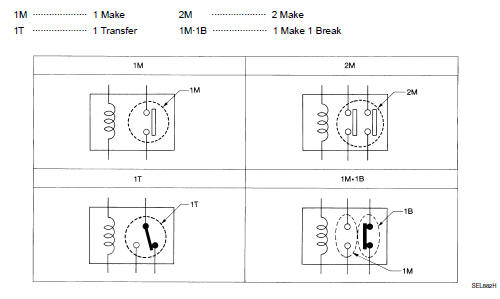

TYPE OF STANDARDIZED RELAYS

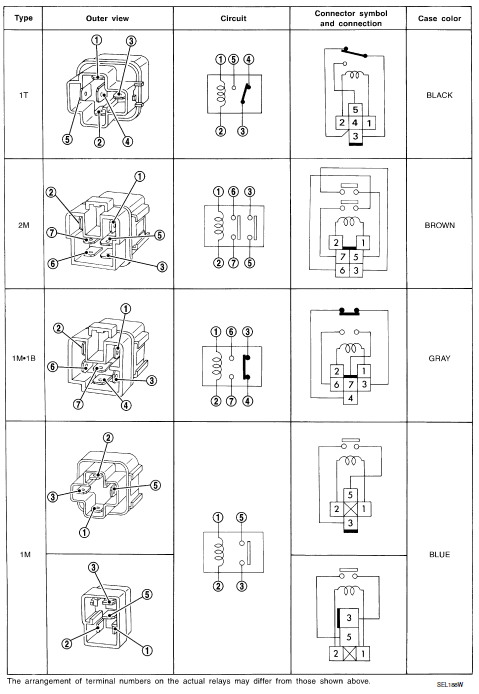

Type of standardized relays

Type of standardized relays

Harness connector
Description HARNESS CONNECTOR (TAB-LOCKING TYPE)  The tab-locking type connectors help prevent accidental looseness or disconnection.  The tab-locking type connectors are disconnec ...

Fuse block - junction box (J/B)
Terminal Arrangement ...
