Nissan Rogue Service Manual: Roof side molding

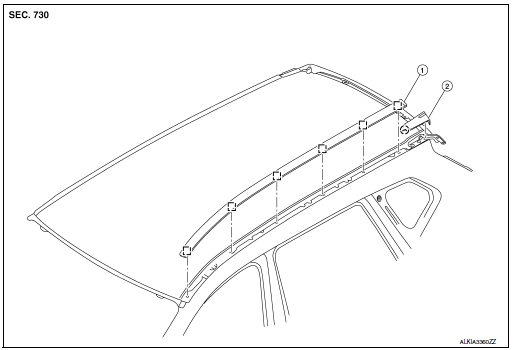

Exploded View

Exploded View

  1. Roof side molding
  2. Back door hinge cover

Metal clip
Pawl

Removal and Installation

REMOVAL

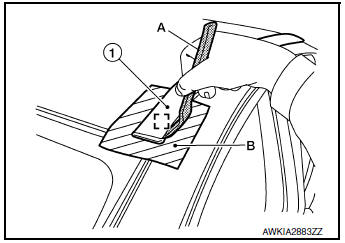

  1.  Release roof side molding (1) using suitable tool (A) then remove roof side molding.

    : Metal clip

CAUTION: Apply protective tape (B) around the roof side molding.

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When installing roof side molding, check that clips are securely placed in body panel holes.
