CHASSIS CONTROL MODULE

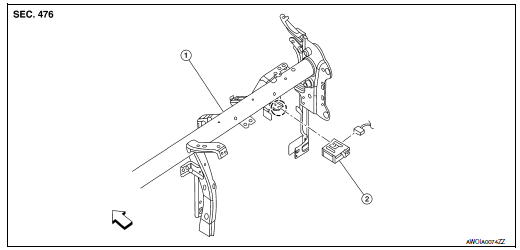

Exploded View

Exploded View

  1. Steering member
  2.  Chassis control module

Front

Removal and Installation

CAUTION: When replacing chassis control module, configuration of chassis control module is required. Refer to DAS-205, "Work Procedure".

REMOVAL

NOTE: If the chassis control module is replaced, user registration information is erased, and all setting items for Nissan InTuition related parts are erased.

  1.  Remove the glove box assembly. Refer to IP-23, "Removal and Installation".
  2.  Release the pawl and remove the chassis control module.

CAUTION: Do not drop the chassis control module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When replacing the chassis control module, perform the configuration of chassis control module.

Refer to DAS-205, "Work Procedure".
