Precautions on cruise control

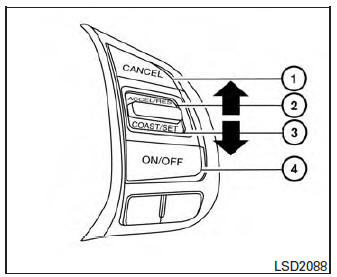

CANCEL switch
ACCEL/RES switch
COAST/SET switch
ON/OFF switch

If the cruise control system malfunctions, it cancels automatically. The CRUISE indicator light in the vehicle information display then blinks to warn the driver.
If the CRUISE indicator light blinks, turn the cruise control switch off and have the system checked by a NISSAN dealer.
The CRUISE indicator light may blink when the cruise control switch is turned ON while pushing the ACCEL/RES, COAST/SET, or CANCEL switch. To properly set the cruise control system, use the following procedures.

WARNING

Do not use the cruise control when driving under the following conditions:

When it is not possible to keep the vehicle at a set speed.
In heavy traffic or in traffic that varies in speed.
On winding or hilly roads.
On slippery roads (rain, snow, ice, etc.).
In very windy areas.

Doing so could cause a loss of vehicle control and result in an accident.

Cruise control operations

The cruise control allows driving at a speed between 25 - 89 MPH (40 - 144 km/h) without keeping your foot on the accelerator pedal. To turn on the cruise control, push the ON·OFF switch ON. Th ...
