Nissan Rogue Service Manual: Heated seat switch

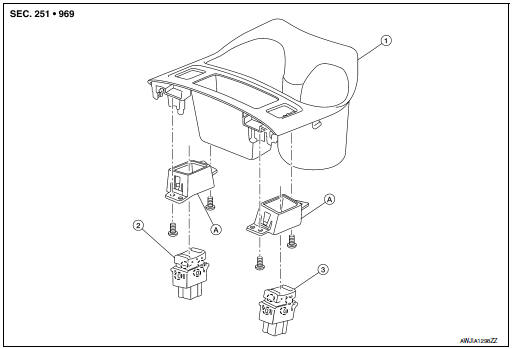

Exploded View

Exploded View

  1. Center console cup holder
  2. Driver heated seat switch
  3.  Passenger heated seat switch
  1. Switch carrier

Pawl

Removal and Installation

REMOVAL

  1.  Remove the center console cup holder. Refer to IP-18, "Exploded View".
  2.  Remove screws from switch carrier and remove switch carrier.
  3.  Release pawls and remove heated seat switch.

INSTALLATION

Installation is in the reverse order of removal.
