Nissan Rogue Service Manual: Door sash molding

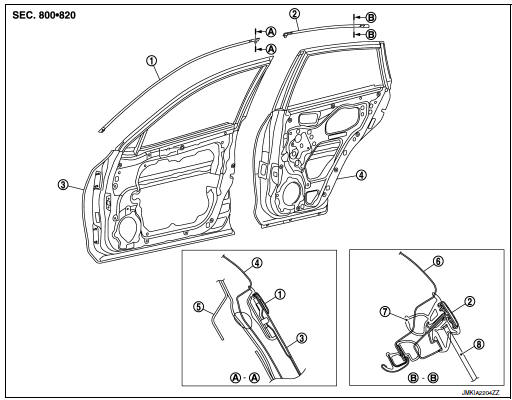

Exploded View

Exploded View

  1. Front door sash molding
  2. Rear door rear sash molding
  3. Front door panel
  4. Rear door panel
  5. Roof rail side outer
  6. Body side outer
  7. Rear door weather strip
  8. Rear door glass

Removal and Installation

FRONT DOOR

Removal

  1.  Remove door mirror. Refer to MIR-22, "Removal and Installation".

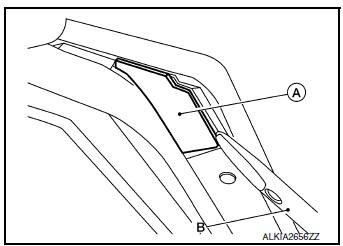

  2.  Remove front door sash molding clip (A) using a suitable tool (B).

Removal

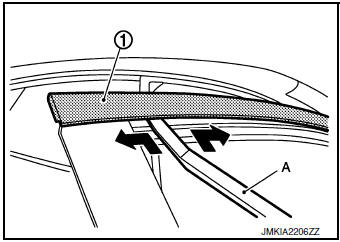

  1. Using a suitable tool (A) remove front door sash molding (1) as shown and remove.

Removal

INSTALLATION

Installation is in the reverse order of removal.

REAR DOOR

Removal

  1.  Remove rear door finisher. Refer to INT-18, "Removal and Installation".

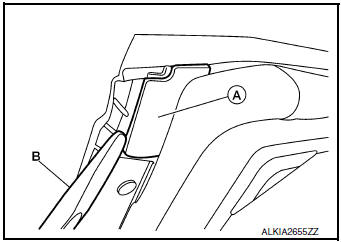

  2.  Remove rear door front sash molding clip (A) using a suitable tool (B).

Removal

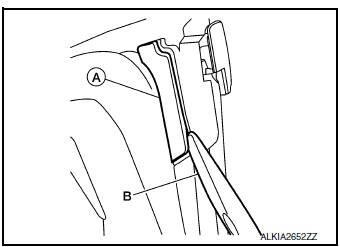

  1. Remove rear door rear sash molding clip (A) using a suitable tool (B).

    CAUTION: Do not reuse the clip (A).

Removal

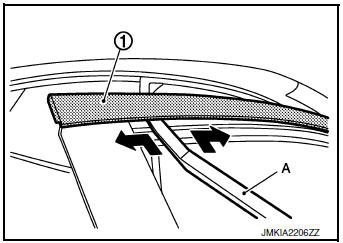

  1. Using a suitable tool (A) remove rear door sash molding (1) as shown and remove.

Removal

INSTALLATION

Installation is in the reverse order of removal.
