Nissan Rogue Service Manual: Door mirror

Wiring Diagram

Wiring Diagram

Wiring Diagram

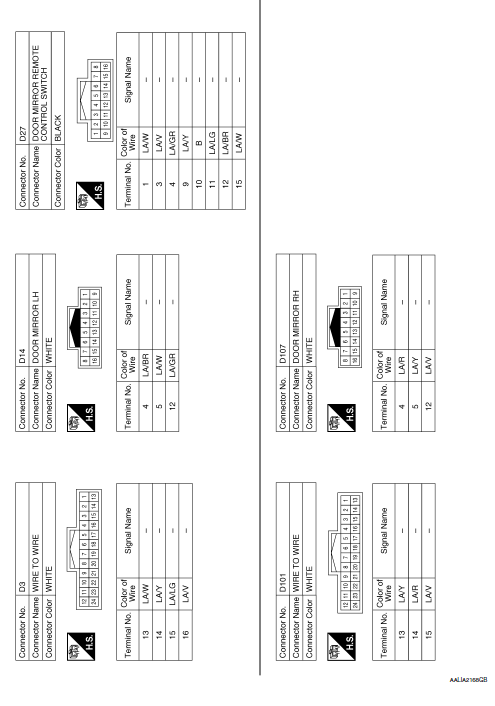

Wiring Diagram

Inside mirror
Wiring Diagram - With Homelink Universal Transceiver Wiring Diagram - Without Homelink Universal Transceiver ...

DTC/circuit diagnosis
DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/ CHANGEOVER SWITCH) Component Inspection 1.CHECK MIRROR SWITCH & CHANGEOVER SWITCH  Turn ignition switch OFF.  Disconnect door m ...
