Nissan Rogue Service Manual: Component parts

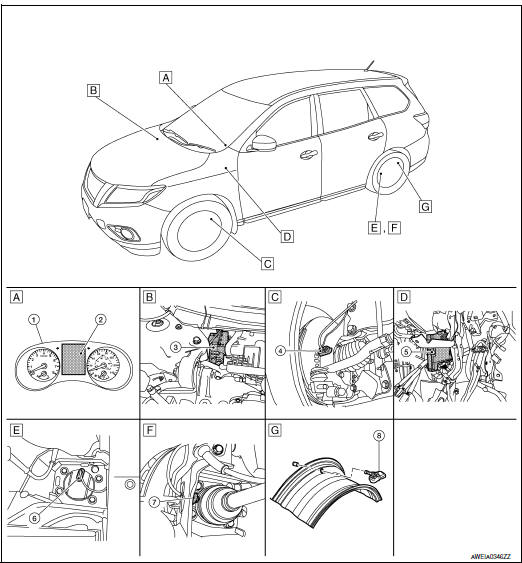

Component Parts Location

Component Parts Location

  1. Combination meter
  2. Engine room (LH)
  3. Left front wheel assembly
  4.  Behind instrument panel (LH)
  5. Left rear wheel assembly
  6. Left rear wheel assembly
  7.  Wheel
No. Component parts Function
1 Combination meter The combination meter receives tire pressure status from the BCM via CAN communication. The combination meter will display the low tire pressure warning lamp when a low tire pressure or system malfunction is detected by the BCM.
2 Information display (in combination meter) Refer to WT-7, "Information Display".
3 ABS actuator and electric unit (control unit) Mainly transmits the following signals to BCM via CAN communication
  •  Wheel sensor signal (ABS)
4 Front wheel sensor LH Refer to BRC-10, "Wheel Sensor and Sensor Rotor".
5 BCM Refer to WT-7, "BCM".
6 Rear wheel sensor LH Refer to BRC-10, "Wheel Sensor and Sensor Rotor".
7 Rear wheel sensor LH (with AWD) Refer to BRC-10, "Wheel Sensor and Sensor Rotor".
8 Tire pressure sensor Refer to WT-7, "Tire Pressure Sensor".

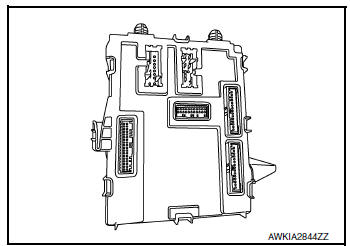

BCM

The BCM reads the air pressure signal received by the remote keyless entry receiver (without Intelligent Key System) or intelligent key receiver (with Intelligent Key System). In addition, the BCM also uses the outside key antennas (driver side, passenger side and rear bumper) to identify the location of the tire pressure sensors. The BCM has a self-diagnosis function used to detect system malfunctions.

BCM

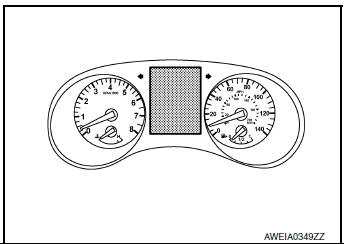

Information Display

A low tire pressure warning or flat tire warning is shown on the vehicle information display when they are transmitted from BCM to combination meter via CAN communication.

Information Display

Condition Vehicle information displ
Ignition switch OFF Not indicated
Ignition switch ON Low tire pressure warning lamp remains ON after blinking for one minute. [Tire Pressure Monitoring System (TPMS) malfunction.] Not indicated
Ignition switch ON Low tire pressure warning lamp remains ON. (low tire pressure) Indicated
Ignition switch ON Flat tire warning Indicated

Tire Pressure Sensor

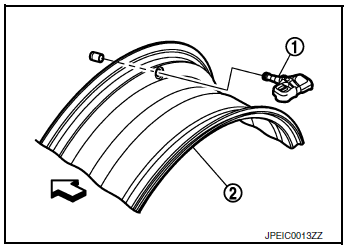

The tire pressure sensor (1) integrated with a valve is installed on a wheel (2), and transmits a detected air pressure and temperature signal by radio wave.

Tire Pressure Sensor

: Outside

System description
...

System
System Description When the vehicle has reached a speed of 40 km/h (25 MPH) or greater, the BCM receives a signal transmitted from the tire pressure sensors installed in each wheel. If the BCM det ...
